Validating metadata

The Metadata Editor checks project metadata in two independent layers:

• Schema validation — does the saved metadata match the JSON Schema for the project type (required properties, types, enums, and other schema constraints)?
• Template validation — does the saved metadata satisfy the user-defined field rules on the template assigned to the project (required fields, regular expressions, length, dates, URLs, and similar)?

Validation is a quality-control report. Incomplete or invalid metadata can still be saved. Schema and template errors are listed so curators can fix them before export or publish to NADA. Publishing requires metadata with no validation errors.

This page covers schema validation, template rules, the editor UI, the validation report, and the API.

Schema validation vs template validation

	Schema validation	Template validation
Source of rules	JSON Schema for the project type (core standard or custom schema)	Field rules and required/recommended status on the form template
Typical checks	Missing schema-required properties, wrong types, enum mismatches, pattern/min/max from the schema	Empty template-required fields, regex, min/max length, alpha, numeric, URL, ISO dates
Where you define it	Schema file (core types are fixed; custom types are edited in the schema registry)	Template Manager — field Status and VALIDATION RULES tab
Where you see it	Project home Project validation panel; full Validation report	Same panel and report
API	GET /api/validation/{sid}/schema and GET /api/editor/validate/{id}	GET /api/validation/{sid}/template

The two layers are independent. A project can pass schema validation and fail template rules (for example a field that the standard treats as optional but the template marks required). It can also pass template rules and fail schema validation (for example a value that is not in a schema enum).

Related checks that are not this page:

• Template alignment in Template Manager (unknown keys, enum mismatch against the schema) — see Designing templates. That checks the template against the schema, not project metadata against template rules.
• Custom schema upload — schema files are validated as JSON Schema Draft-07 when you register them. See JSON Schema guidelines.

Schema validation

Each project type has a JSON Schema. Core types (microdata, indicator, document, and others) ship with the editor. Organization-defined types use a schema from the schema registry.

Schema validation runs against the saved project metadata (application-managed keys such as created and template_uid are not treated as study fields). It reports issues such as:

• Missing properties listed in the schema required array
• Values that do not match the declared type (string, number, array, object, boolean)
• Values not in a schema enum
• Failures of schema pattern, minimum / maximum, and similar Draft-07 keywords
• Array stored as object — an object with numeric keys where the schema expects an array (common after some imports). The report marks these as array_as_object and the UI can convert them.
• Extra fields — metadata keys that are not defined in the schema (listed separately from schema errors; they do not always fail schema validation)

For microdata / survey projects, schema validation of the study document is complemented by variable checks against the variable JSON Schema (empty labels, invalid variable documents). Those appear in the home panel and on the full report.

Schema constraints come from the standard (or your custom schema). You cannot relax a schema-required field in a template. You can make additional fields required in the template; that is template validation, not schema validation.

Template user-defined validation rules

Templates tailor a standard for curators. Two template settings affect validation:

1. Status — Required. A field that is not required by the schema can be marked required in the template. Empty required fields do not block Save; they appear as template validation errors. Prefer Recommended for important but non-mandatory fields. Schema-required fields cannot be made optional. See Purpose of templates and Designing templates.
2. VALIDATION RULES tab. Per-field rules that the curator’s value must satisfy when the field has content (and, for required, when it is empty).

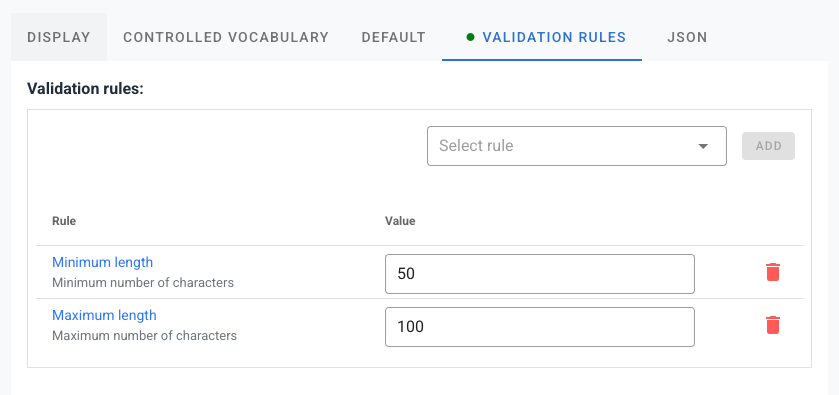

Open a field in Template Manager. The VALIDATION RULES tab lists rules for that element. A green dot on the tab title means one or more rules are set.

Available rules

Rule	Parameter	What it checks
Regular expression (regex)	Pattern string	Value must match the pattern. Enter the pattern only, without slashes or flags (not /pattern/). Use ^ and $ to match the whole value. Example: ^[A-Z0-9_-]+$.
Minimum length (min)	Integer	Minimum number of characters
Maximum length (max)	Integer	Maximum number of characters
Letters only (alpha)	—	Alphabetic characters only
Letters and numbers (alpha_num)	—	Letters and digits only
Numeric (numeric)	—	Numeric value
URL (is_uri)	—	Valid URL
Date (YYYY-MM-DD) (iso_date)	—	Complete calendar date, for example 2024-03-15
Date (YYYY, YYYY-MM, or YYYY-MM-DD) (iso_date_partial)	—	Year, year-month, or full date

required as a rule is not added on this tab. Use the field Required checkbox instead.

min and max are length constraints, not numeric minimum/maximum values. Use numeric together with a regex if you need a numeric range.

Template rules apply to the template assigned to the project. If no template is assigned, the editor (and the template validation API) falls back to the default template for the project type, then to the first core template.

Validation in the user interface

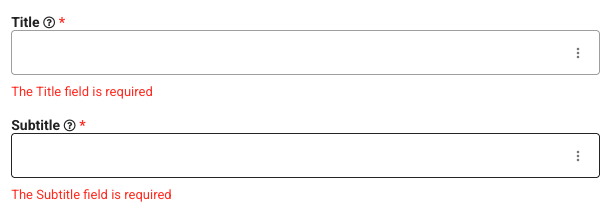

Field-level hints

On metadata entry forms, template rules are also applied as input rules on the field (Vuetify/VeeValidate). Invalid values show an error on the control while the curator is editing. These hints use the same rule set as template validation; the authoritative saved-metadata report is the home panel and the full validation report.

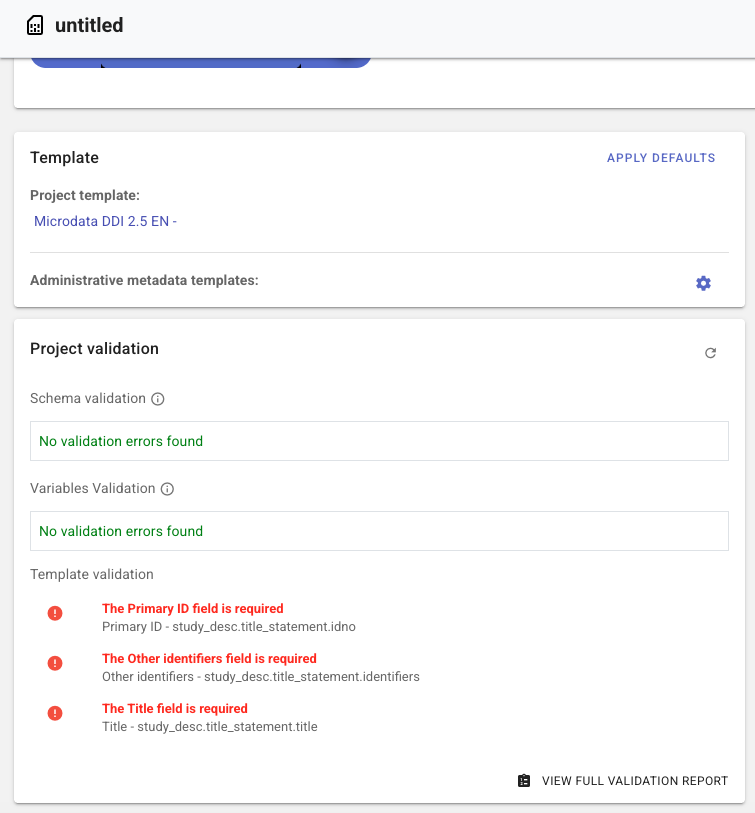

Project home — Project validation panel

On the Project home page, the Project validation frame summarizes issues for the saved metadata:

• Schema validation — violations of the JSON Schema (and, for microdata, variable schema issues)
• Template validation — violations of template required status and VALIDATION RULES

Click an error to open the field that needs to be edited. Use View full validation report for the detailed report (schema issues with types and paths, every template field that has rules, extra fields, and remediations).

The panel refreshes after metadata changes (with a short delay). Save the project so the report matches what is stored.

Full validation report

The full report is a dedicated project page (from the home panel). It loads schema, template, extra-field, and (for microdata) variable results from the validation API. Use Refresh after you save corrections.

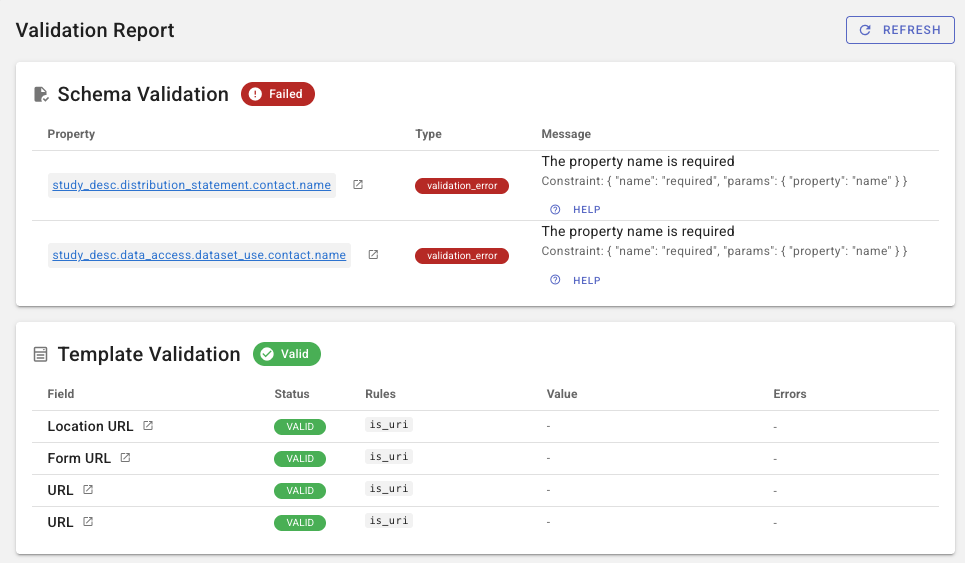

The validation report

The report is organized in sections. HTTP-style APIs that feed this page return HTTP 200 even when validation.valid is false; the valid flag (and the issue lists) tell you whether metadata passed.

Schema validation

Each issue includes:

• Property / path — JSON Pointer or field path; click it to jump to the field in the editor
• Type — for example validation_error, array_as_object, or type_mismatch
• Message — human-readable explanation; some rows also show the schema constraint and expected vs actual type
• Help — short guidance for that error type

A green Valid chip means no schema issues. Failed lists the issues.

Fixable type problems (including array-as-object) can be corrected from the report; the editor updates the in-memory metadata. Save the project to persist the fix.

Template validation

The template section lists fields that have template rules, with status (valid / invalid), rules applied, a value preview, and error messages. Click the field path to open it in the editor.

If template validation was skipped (no usable template), the section shows a warning instead of pass/fail.

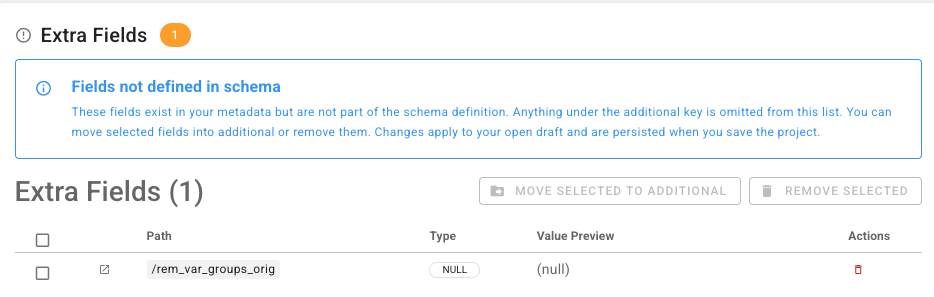

Extra fields

Extra fields are metadata paths that are not defined in the project-type JSON Schema (the additional subtree is handled separately). They often come from imports or from fields removed from a later schema/template.

Users with edit access can:

• Move selected to additional — keep the values under additional (JSON Patch; schema validation is skipped while applying the patch)
• Remove selected — delete the paths

A related API, GET /api/validation/{sid}/template_extra_fields, lists fields present in the metadata but not in the selected template. That comparison is available via the API; the on-screen extra-fields table is the schema extra-fields list.

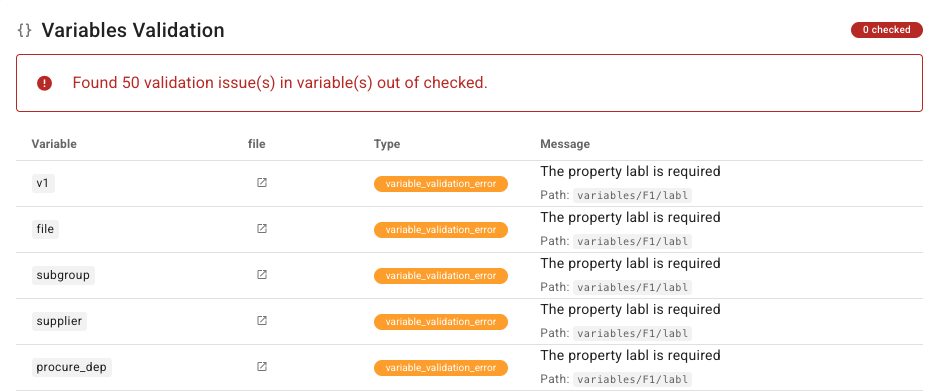

Variables (microdata)

For microdata/survey projects, a Variables validation section lists variable-level schema issues (variable name, file, type, message). The list is capped (the UI shows the first 50 by default; the API limit can go up to 1000). Click through to the data file’s variables page.

Validation API

Authenticate with an API key as described in Introduction to the API. {sid} on /api/validation/... routes is the numeric project ID (not IDNO). {id} on /api/editor/validate/{id} accepts project ID or IDNO.

View access is enough to read reports. Edit access is required for remediations (move_to_additional, remove_fields, fix_array_as_object).

Full request/response schemas are in the API reference.

Pass/fail vs structured report

Endpoint	What it checks	When invalid
GET /api/editor/validate/{id}	JSON Schema for the project type; for microdata, also all variables	HTTP 400 with errors. Template rules are not applied.
GET /api/validation/{sid}/schema	Same schema check as above, as a structured report	HTTP 200 with validation.valid: false and validation.issues
GET /api/validation/{sid}/template	Template field rules	HTTP 200 with validation.valid: false (or valid: null if skipped)

Use /api/editor/validate/{id} when a pipeline only needs pass/fail. Use /api/validation/{sid}/schema and /api/validation/{sid}/template when you need paths, messages, and (for templates) the per-field report that the UI shows.

GET /api/validation/{sid} is an alias of GET /api/validation/{sid}/schema.

Template report

GET /api/validation/{sid}/template

• Default: template assigned to the project, else the type default, else the first core template (validation.template_uid_source is assigned, default, or core).
• Optional query template_uid — validate against another template of the same data type without changing the project assignment (template_uid_source is override). HTTP 400 if the UID is unknown or the type does not match.

Response (simplified):

{
  "status": "success",
  "validation": {
    "template_uid": "my-template-uid",
    "template_uid_source": "assigned",
    "valid": false,
    "issues": [],
    "validation_report": [
      {
        "field": "study_desc.title_statement.idno",
        "path": "/study_desc/title_statement/idno",
        "title": "Primary ID",
        "status": "invalid",
        "rules_applied": ["regex"],
        "errors": ["..."],
        "error_count": 1
      }
    ]
  }
}

Other validation endpoints

Method	Path	Purpose
GET	/api/validation/{sid}/variables	Microdata variable schema report. Query limit (default 50, max 1000); mode=light checks empty labels only. HTTP 400 for non-microdata projects.
GET	/api/validation/{sid}/extra_fields	Metadata paths not in the type JSON Schema
GET	/api/validation/{sid}/template_extra_fields	Metadata paths not in the selected template (template_uid optional, same fallback as template validation)
POST	/api/validation/{sid}/move_to_additional	Move selected paths into additional (JSON body with paths; edit access)
POST	/api/validation/{sid}/remove_fields	Remove selected paths (edit access)
POST	/api/validation/{sid}/fix_array_as_object	Convert numeric-key objects to arrays at given JSON Pointers (edit access)

Remediation POSTs skip schema validation while applying the JSON Patch so the cleanup can succeed; re-run schema/template GETs afterward.

Validate on update

On update or JSON Patch, you can schema-validate the stored document before saving:

• Update: include "validate": true in the body (create does not schema-validate the request body).
• Patch: schema validation runs by default; set "validate": false to skip.

That flag is schema validation only; it does not apply template rules. After saving, call GET /api/validation/{sid}/template if you need template results.

See the OpenAPI validate property on create/update request parameters.

Example

Schema report for project ID 123:

GET /api/validation/123/schema
X-API-Key: your_api_key_here

Template report against a specific template:

GET /api/validation/123/template?template_uid=my-template-uid
X-API-Key: your_api_key_here

Pass/fail (ID or IDNO):

GET /api/editor/validate/123
X-API-Key: your_api_key_here

Related topics

• Purpose of templates — required vs recommended; why template rules exist
• Designing templates — VALIDATION RULES tab; template-to-schema alignment
• General instructions — project home page
• JSON Schema guidelines — authoring schemas that the editor will enforce
• Publish to NADA — publishing requires metadata with no validation errors
• Introduction to the API / API reference
• Structural metadata (project) — indicator DSD structure and data validation (separate from this page)
