Google Trends in Bangladesh

Show code cell source

Hide code cell source

import os, sys
import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
import networkx as nx
from datetime import datetime as dt
import geopandas as gpd

from googleapiclient.discovery import build
from googleapiclient.http import HttpError

# from credentials import get_key

import os
API_KEY = os.environ.get('API_GOOGLE_TRENDS')  # Using .get() to avoid KeyError

We ensure API connection

The general purpose of this code is to provide a Google class that acts as a wrapper to interact with the Google API, specifically designed to perform authentication and GET requests to the Google Trends service. It allows accessing API methods, such as getGraph and getTimelinesForHealth, processing the data obtained in JSON format, converting them into a DataFrame with the pandas library and exporting them as CSV files for easy analysis. In addition, it includes functionalities to handle authentication through an API token and encapsulates the API interaction logic to simplify its use in custom applications.

# pip install python-dotenv

Show code cell source

Hide code cell source

class Google():
    """
    Wrapper class for handling authentication and requests (GET) to Google API

    Parameters
    ----------
    token : str
        Google API token

    Notes
    -----
    For more information, please see https://developers.google.com/apis-explorer
    """
    def __init__(self, token=None):
        self.TOKEN = token if token else os.environ.get('API_GOOGLE_TRENDS')
        self._service = None

    @property
    def service(self):
        """Authenticate and instantiate Google API service"""
        return build('trends', 'v1beta', static_discovery=False, developerKey=self.TOKEN)

    def get(self, method, params):
        """Get result from Google API method"""
        return getattr(self.service, method)(**params).execute()


    def download(self, method, params):
        """Download result from Google API method"""

        if not method in ["getGraph", "getTimelinesForHealth"]:
            raise NotImplementedError("Method not supported.")

        result = self.get(method, params)

        df = pd.json_normalize(result["lines"], meta=["term"], record_path=["points"])

        params = "+".join([f"{k}={v}" for k, v in params.items()])
        name = f"{method}+{params}.csv"

        df.to_csv(name, index=False)

Show code cell source

Hide code cell source

API_KEY = os.environ.get('API_GOOGLE_TRENDS')
google = Google(API_KEY)  # Use API_KEY directly instead of get_key()

For the purpose of this analysis, we’ve broken down search terms into six major categories. These categories broadly caputre people’s interest over time and provides high level insights into their behavior. These categories include:

• Exchange Rate

• Devaluation

• Prices

• Natural Disasters

• Conflicts

• Other relevant terms

These terms have been collected from Google’s related terms and topics search, as well as brainstorming with the team.

Topic based search

Show code cell source

Hide code cell source

forex_terms = {"Exchange Rate": ["bangladeshi immigration", 'bangladeshi birr', "bangladeshi black market", "National Bank of Bangladesh",
               "Central Bank of Bangladesh", "BRAC Bank exchange rate",
            "Dutch-Bangla Bank Limited exchange rate", "national bank of bangladesh exchange rate", "gold price in bangladesh"]}

deval_terms = {"Devaluation" : ["GDP per capita", "inflation rate "]}

price_terms = {"Prices" : ["fuel price in bangladesh", "fuel price", "gasoline price", "gold price", "gold price in bangladesh",
               "silver price in bangladesh"]}

disaster_terms = {"Natural Disasters" : ["earthquake", "landslides", "floods"]}

conflict_terms = {
    "Conflict": [
        "Sheikh Hasina",
        "student protest",
        "bangladesh quota protest",
        "violence in bangladesh",
        "labor strikes Bangladesh",
    ]
}

other_terms = {"The urban redevelopment plan" : ["Old Dhaka"]}

Show code cell source

Hide code cell source

df = pd.DataFrame()

for dicts in [forex_terms, deval_terms, price_terms, disaster_terms, conflict_terms, other_terms]:

    for topic, lis in dicts.items():
        for term in lis:
            filters = {
                        'terms': term,
                        'restrictions_geo': "BD",
                        'restrictions_startDate': "2024-01",
                        'restrictions_endDate' : "2024-10"
                    }

            r = google.get('getGraph', filters)

            df_ = pd.DataFrame(r['lines'][0]['points'])
            df_['term'] = term
            df_['topic'] = topic

            df = pd.concat([df, df_])

Show code cell source

Hide code cell source

def get_topic_charts(df, topic):
    """"
    Function to create plots for a selected topic

    Inputs:
    df : pandas dataframe with Google's data from API
    tpoic : topic to plot data for

    Returns
    None
    """

    dftemp = df.query(f"topic == '{topic}'")
    dftemp.date = dftemp.date.apply(pd.to_datetime)
    dftemp = dftemp.pivot(index = 'date', columns = 'term', values = 'value')

    for cols in dftemp.columns:
        if len(dftemp[cols].unique()) == 1:
            del dftemp[cols]


    fig, ax = plt.subplots(1, 1)
    dftemp.plot(ax = ax, figsize = (15, 8))
    if topic == "Conflict":
        ax.axvline(pd.Timestamp('2024-08-05'),color='r', ls = '-.', lw = 2, label = "Uncontrolled protests") #Estas etiquetas corresponden para el caso de Etipia. CAMBIAR
    elif topic == "Natural Disasters":
        pass
    else:
        ax.axvline(pd.Timestamp('2024-08-05'),color='r', ls = '-.', lw = 2, label = "Uncontrolled protests") # Ajustado al caso de Bangladesh
    plt.legend()
    plt.ylabel("Normalized search score", fontsize = 10);
    plt.xlabel('')
    ax.set_title(f"Relative Google Search Trends for {topic} related terms", fontsize = 12);

Conflict Related Terms

Key Conclusions from Google Trends Data on Protests in Bangladesh

1. Heightened Public Attention in August: The data shows significant spikes in search interest for “violence in Bangladesh,” “student protest,” and “Sheikh Hasina” in August, aligning with a period of major political unrest and protests.

2. Prime Minister’s Resignation as a Turning Point: The vertical line indicating the announcement of the Prime Minister’s resignation marks a critical event that likely intensified public and media interest in the ongoing protests.

3. Focus on Political Leadership and Civil Unrest: Sustained interest in “Sheikh Hasina” throughout the year underscores the central role of political leadership in the discourse surrounding protests and unrest in Bangladesh.

get_topic_charts(df, "Conflict")

C:\Users\Alexander\AppData\Local\Temp\ipykernel_42088\3208693226.py:14: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  dftemp.date = dftemp.date.apply(pd.to_datetime)

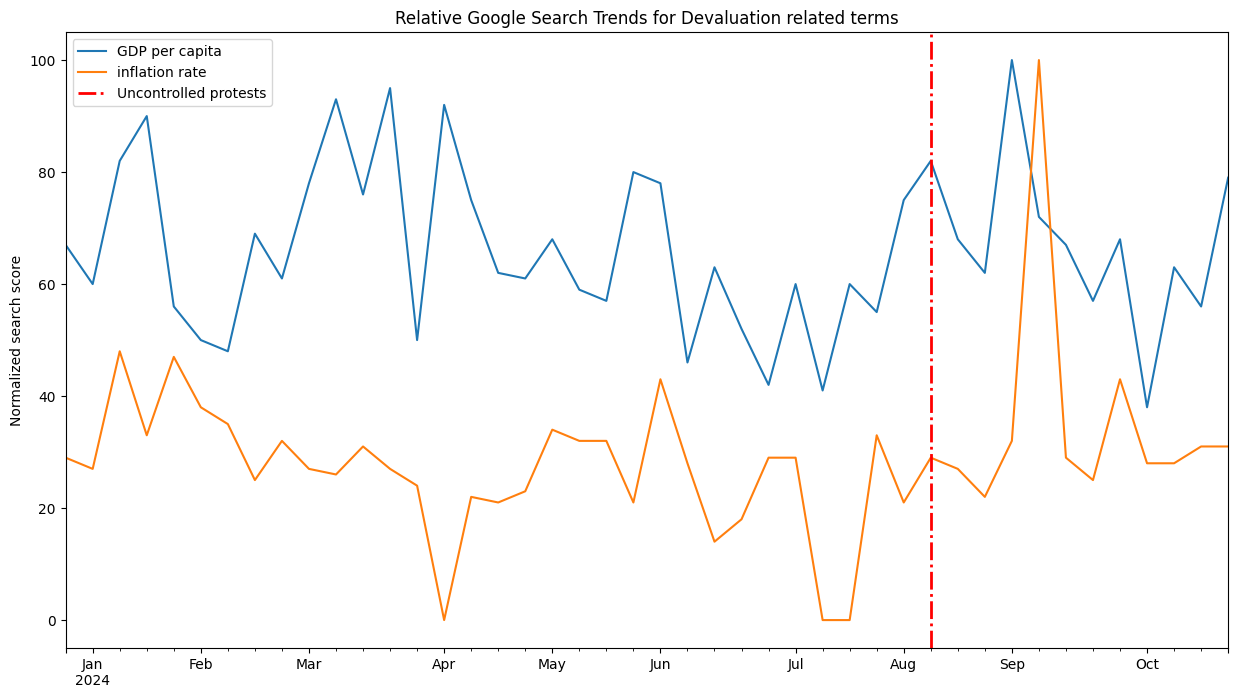

GDP Related Terms

This graph provides insight into how Google searches around devaluation-related topics in Bangladesh fluctuated throughout 2024. The volatility across all three terms suggests significant economic and political developments impacting the country during this period.

Key observations:

• The GDP per capita and inflation rate trends show significant volatility throughout the year, with sharp spikes and drops in search activity.

• The GDP per capita and inflation rate searches appear to be closely correlated, suggesting the public is searching for information on the economic situation and its impact.

get_topic_charts(df, "Devaluation")

C:\Users\Alexander\AppData\Local\Temp\ipykernel_42088\3208693226.py:14: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  dftemp.date = dftemp.date.apply(pd.to_datetime)

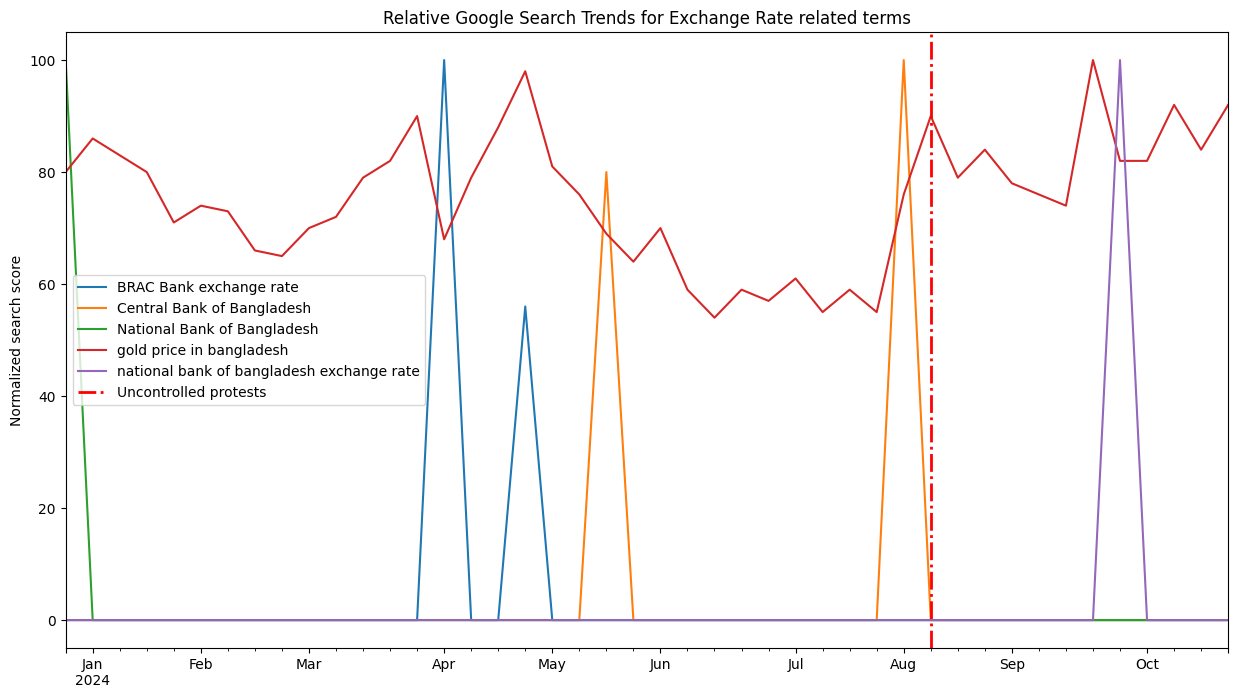

Exchange Rate related Terms

This section uses the data gatehred from Google’s API and creates charts to see the trends for each of the search terms. In cases where its relevant, the benchmarking lines are shown for when FX market liberalization was annnounced and when Somaliland agreed to lease land to Ethiopia to build a naval facility.

For the topics Exchange rate, Devaluation and Prices - we can see sharp increase in the search for July 28th 2024, which was the date when market liberalization news first came out. People were inersted in knowing the more about devaluation and what it meant for the economy.

The graph represents the normalized search volume for each term over time. A higher search score indicates an increase in the number of Google searches for that specific term.

Key insights from the graph:

Search Spikes: Significant search activity is observed for terms like “BRAC Bank exchange rate,” “Central Bank of Bangladesh,” and “Bangladeshi immigration” around the middle of the year.

Volatility: The search trends for most terms are characterized by sharp fluctuations, with noticeable rises and declines throughout the year.

Stability: “Gold price in Bangladesh” and “National Bank of Bangladesh” exhibit relatively steady and lower search volumes compared to other terms, indicating less variation in public interest.

Show code cell source

Hide code cell source

get_topic_charts(df, "Exchange Rate")

C:\Users\Alexander\AppData\Local\Temp\ipykernel_42088\3208693226.py:14: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  dftemp.date = dftemp.date.apply(pd.to_datetime)

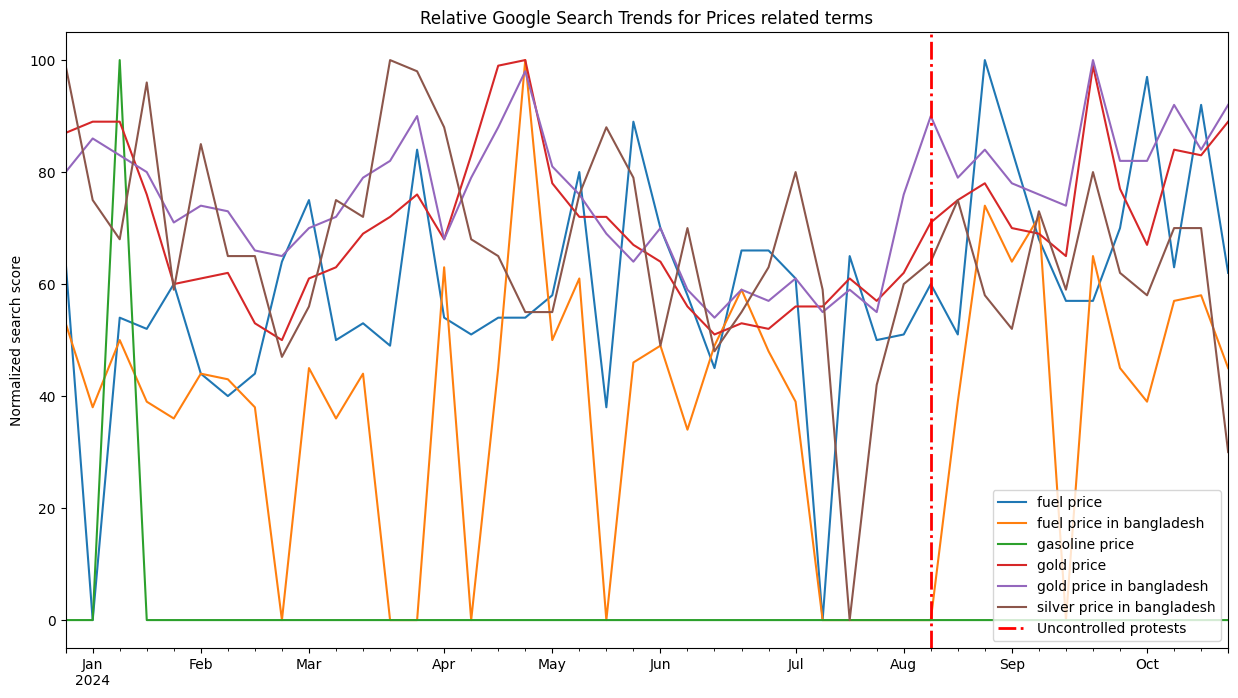

Prices Related Terms

The fluctuations seen in these price-related terms suggest that Bangladesh likely faced significant economic events or disruptions affecting the cost of living during this period. The spike in searches for “Uncontrolled protests” could reflect public unrest or reactions to these price changes.

Key observations:

• The search trends for fuel prices, both globally and in Bangladesh, show considerable volatility throughout the year, with several sharp increases and decreases.

• The prices of gold (globally and in Bangladesh) and silver in Bangladesh also demonstrate notable fluctuations, with large shifts in public search interest.

• Overall, the graph suggests that major developments and changes in fuel, precious metals, and other prices in Bangladesh throughout 2024 generated substantial public interest and search activity.

Show code cell source

Hide code cell source

get_topic_charts(df, "Prices")

C:\Users\Alexander\AppData\Local\Temp\ipykernel_42088\3208693226.py:14: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  dftemp.date = dftemp.date.apply(pd.to_datetime)

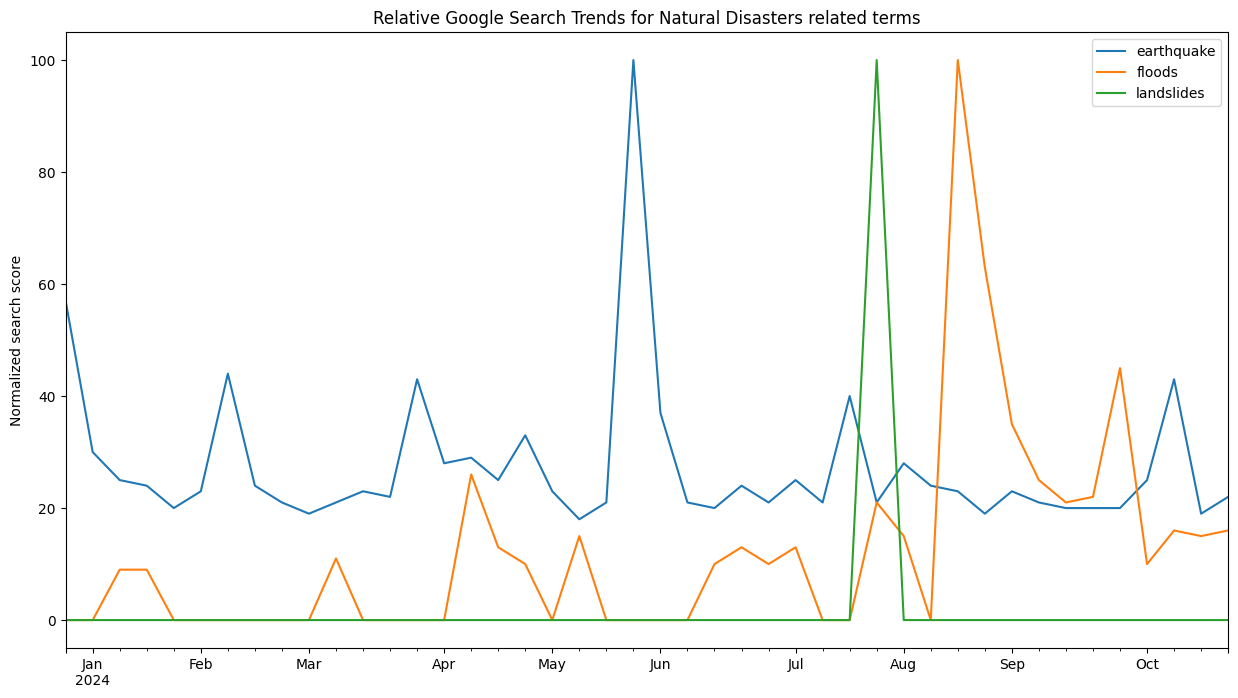

Natural Disasters Related Terms

Key Conclusions from Google Trends Data on Natural Disasters in Bangladesh (2024)

1. Significant Spikes in Search Interest During Major Flood Events: The data indicates notable increases in search activity corresponding to the major flood events in August and October 2024.Similarly, in October 2024, floods destroyed an estimated 1.1 million metric tons of rice, prompting increased public concern and information-seeking behavior.

2. Elevated Interest in Specific Regions: Search terms related to affected areas, such as “Feni floods” and “Cox’s Bazar landslides,” saw heightened activity during and after the natural disasters. This trend reflects the public’s focus on regions severely impacted by events like the August floods, which led to significant displacement and infrastructure damage in districts including Feni and Cox’s Bazar.

Show code cell source

Hide code cell source

get_topic_charts(df, "Natural Disasters")

C:\Users\Alexander\AppData\Local\Temp\ipykernel_42088\3208693226.py:14: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  dftemp.date = dftemp.date.apply(pd.to_datetime)

Subanational Coverage

What Does “Weeks with Valid Data” Mean?

1. Google Trends provides normalized search interest scores (0-100) for each term and week; a score of 0 means no measurable interest.

2. Weeks with valid data are those where the score (value) is greater than 0, indicating measurable public interest.

3. The code counts these valid weeks for each term and region to identify the consistency of interest over time.

4. Regions with higher counts of valid weeks show sustained or frequent interest in the given term.

Show code cell source

Hide code cell source

shapefile_path = "../../data/bgd_admbnda_adm1_bbs_20201113/bgd_admbnda_adm1_bbs_20201113.shp"
gpf = gpd.read_file(shapefile_path)
gpf['ADM1_PCODE'] = gpf['ADM1_PCODE'].str.strip()
gpf['ADM1_PCODE'] = gpf['ADM1_PCODE'].str.replace('\u200b', '')
print(gpf['ADM1_PCODE'].unique())

['BD10' 'BD20' 'BD30' 'BD40' 'BD45' 'BD50' 'BD55' 'BD60']

Show code cell source

Hide code cell source

pcode_mapping = {
    'BD10': 'BD-A',  # Barisal
    'BD20': 'BD-B',  # Chittagong
    'BD30': 'BD-C',  # Dhaka
    'BD40': 'BD-D',  # Khulna
    'BD45': 'BD-H',  # Mymensingh
    'BD50': 'BD-E',  # Rajshahi
    'BD55': 'BD-F',  # Rangpur
    'BD60': 'BD-G'   # Sylhet
}

gpf['ADM1_PCODE'] = gpf['ADM1_PCODE'].map(pcode_mapping)

Show code cell source

Hide code cell source

sub_dirs = [{'BD-A': 'Barisal'},
            {'BD-B': 'Chittagong'},
            {'BD-C': 'Dhaka'},
            {'BD-D': 'Khulna'},
            {'BD-H': 'Mymensingh'},
            {'BD-E': 'Rajshahi'},
            {'BD-F': 'Rangpur'},
            {'BD-G': 'Sylhet'}]

Show code cell source

Hide code cell source

df = pd.DataFrame()
for geo in sub_dirs:
    for dicts in [forex_terms, deval_terms, price_terms, disaster_terms, conflict_terms, other_terms]:

        for topic, lis in dicts.items():
            for term in lis:
                filters = {
                            'terms': term,
                            'geoRestriction_region': list(geo.keys())[0],
                            'time_startDate': "2024-01-01",
                            #'time_endDate' : "2024-10-",
                            "timelineResolution" : "week"
                        }
                try:

                    r = google.get('getTimelinesForHealth', filters)

                    df_ = pd.DataFrame(r['lines'][0]['points'])
                    df_['term'] = term
                    df_['topic'] = topic
                    df_['geo'] = list(geo.keys())[0]

                    df = pd.concat([df, df_])

                except HttpError:
                    pass

Show code cell source

Hide code cell source

gpf = gpf[gpf.ADM0_PCODE == 'BD']


con_map = {
    'Barisal': 'BD-A',
    'Chittagong': 'BD-B',
    'Dhaka': 'BD-C',
    'Khulna': 'BD-D',
    'Mymensingh': 'BD-H',
    'Rajshahi': 'BD-E',
    'Rangpur': 'BD-F',
    'Sylhet': 'BD-G'
}

gpf['ISO_S1'] = gpf.ADM1_EN.map(con_map)

Show code cell source

Hide code cell source

count_temp = df[df.value != 0].groupby(['topic', 'term', 'geo'])['value'].count().reset_index()

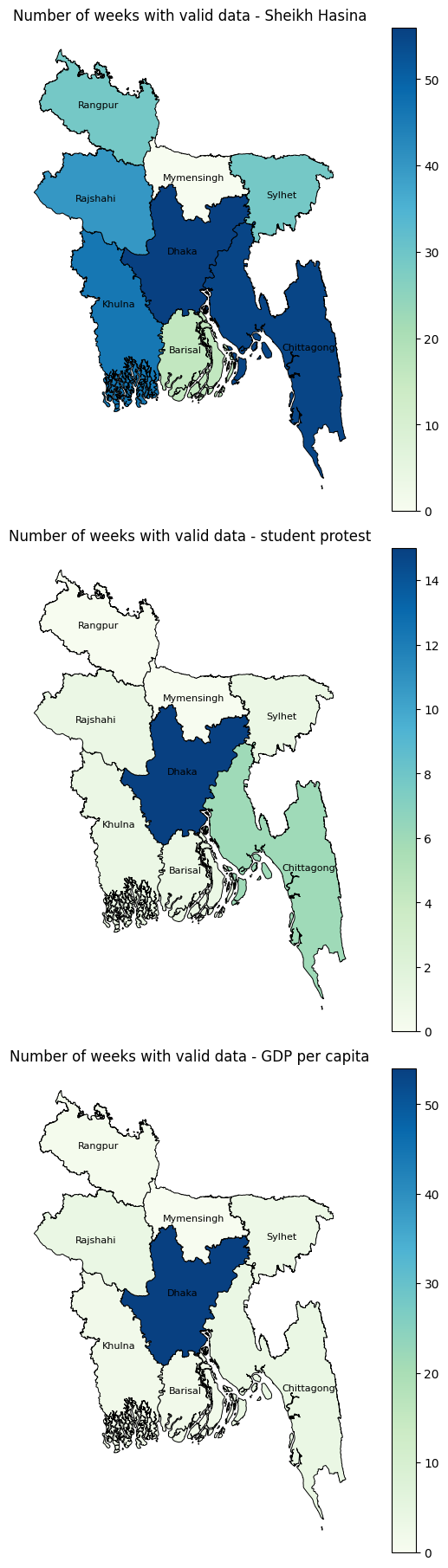

Key Conclusions from the Figures

1. High Public Interest in Dhaka Across Topics: Dhaka consistently shows the highest number of valid weeks for all three terms (“Sheikh Hasina,” “student protest,” and “GDP per capita”), indicating its central role in public discourse and economic focus.

2. Regional Variations in Interest: Interest in “Sheikh Hasina” is widespread across divisions, while “student protest” and “GDP per capita” are concentrated more in specific regions, reflecting localized concerns or issues.

3. Limited Attention in Peripheral Divisions: Divisions like Rangpur and Sylhet generally show fewer valid weeks, suggesting less search activity or lower relevance for these terms in these regions.

Show code cell source

Hide code cell source

terms = ["Sheikh Hasina", "student protest", "GDP per capita"]


fig, axes = plt.subplots(nrows=len(terms), ncols=1, figsize=(8, len(terms) * 6), constrained_layout=True)

for ax, term in zip(axes, terms):

    sub_temp = count_temp.query(f"term == '{term}'")

    sub_temp = gpf.merge(sub_temp, left_on='ISO_S1', right_on='geo', how='left')

    sub_temp['value'] = sub_temp['value'].fillna(0)

    sub_temp = gpd.GeoDataFrame(sub_temp)

    sub_temp['coords'] = sub_temp['geometry'].apply(lambda x: x.representative_point().coords[:])
    sub_temp['coords'] = [coords[0] for coords in sub_temp['coords']]

    sub_temp.plot(column='value', cmap='GnBu', legend=True, edgecolor='k', linewidth=0.7, ax=ax)

    for idx, row in sub_temp.iterrows():
        ax.text(row.coords[0], row.coords[1], s=row['ADM1_EN'],
                horizontalalignment='center', fontsize=8, color='black')

    ax.axis('off')
    ax.set_title(f"Number of weeks with valid data - {term}", fontsize=12)

plt.show()

Flourish Graph

Explanation of the Flourish Graph Code

1. Data Collection: The code collects Google Trends data for various terms related to finance, business, law, health, and travel in Bangladesh from January to October 2024. The average search interest value for each term is calculated.

2. Data Organization: The data is structured in a DataFrame with columns for category, subcategory, term, and average search interest value (Value).

3. Visualization with Plotly: A sunburst chart is created using Plotly, showing hierarchical relationships between categories, subcategories, and individual terms, with the size of each segment proportional to its search interest value.

4. Interactive Features: The sunburst chart is interactive, allowing users to explore categories, subcategories, and terms visually, making it easier to analyze search trends in Bangladesh.

Show code cell source

Hide code cell source

finance_terms = {"Finance": [{"Bank": ["bangladesh bank", "bank of bangladesh", "commercial bank",
                                       "bangladesh commercial bank", "commercial bank of bangladesh",
                                       "Sonali Bank PLC", "Janata Bank PLC","Agrani Bank PLC",
                                       "Rupali Bank PLC", "BRAC Bank PLC", "Dutch-Bangla Bank PLC",
                                       "Islami Bank Bangladesh PLC", "Standard Chartered Bank","Pubali Bank PLC",
                                       "bank rate today", "what is bank", "national bank of bangladesh",
                                       "today bank exchange rate", "bank account", "exchange rate today"
                                       ]},
                             {"Mobile banking": ["mobile banking app", "mobile banking code", "mobile banking app download",
                                                 "Sonali e-Wallet", "Janata mobile", "Islami mobile"]},
                             {"Currency": ["bangladesh currency", "currency exchange", "dollar", "dollar currency",
                                           "exchange rate", "euro currency", "foreign currency"
                                           ]}

                             ]}

business_terms = {"Business & industrial" : [{"Mining": ["what is mining", "bitcoin", "bitcoin mining", "mining in bangladesh",
                                                         "mining meaning", "crypto mining", "data mining", "gold mining", "usdt mining", "ton mining",
                                                         "cloud mining", "crypto mining app", "what is bitcoin mining", "what is data mining", "bitcoin mining app",
                                                         "what is bitcoin", "bitcoin mining free", "ton coin mining", "mining engineering", "free bitcoin mining"

                                            ]},
                                             {"Logistics": ["logistics management", "supply chain management", "logistics jobs", "what is logistics", "transport and logistics",
                                                            "logistics meaning", "ministry of transport and logistics", "inbound logistics"

                                             ]},
                                             {"Media": ["social media", "what is media", "ATN Bangla", "Prothom Alo"

                                             ]},
                                             {"Communication": ["what is communication", "communication skills", "business communication", "data communication", "effective communication", "communication english",
                                                                "communication technology", "communication media", "types of communication", "information", "communication meaning", "wireless communication", "communication process", "communication skill",
                                                                "health communication", "mobile communication", "verbal communication", "process of communication", "define communication", "type of communication",
                                                                "meaning of communication", "communication barriers", "good communication", "communication skills pdf", "business communication pdf"
                                             ]},

                                             {"Technology": ["science", "what is technology", "science and technology", "information technology", "emerging technology", "digital technology",
                                                             "new technology", "Bangladesh University of Engineering and Technology", "International University of Business Agriculture and Technology",
                                                             "ai technology", "define technology", "blockchain technology", "what is computer", "what is digital technology", "computer science",
                                                             "advantage of technology", "educational technology", "information communication technology", "ministry of innovation and technology"
                                                             ]
                                              }]}

law_terms = {"Law & Government" : [{"Ethics": ["what is ethics", "professional ethics", "morality", "business ethics", "virtue ethics", "ethics and morality",
                                               "ethics meaning", "code of ethics", "medical ethics", "health ethics", "research ethics", "work ethics",
                                               "principles of ethics", "what is the difference between", "normative ethics", "types of ethics", "ethics example",
                                               "what is ethics pdf", "define ethics", "environmental ethics", "what is morality", "applied ethics", "nursing ethics", "what is virtue ethics",
                                               "difference between ethics and morality"]},
                                   {"Rights": ["human rights", "what is rights", "human rights in bangladesh", "what is human rights", "all", "human rights law",
                                               "2024", "what are human rights", "reserved", "civil rights", "all rights reserved", "democratic rights",
                                               "copyright", "bangladeshi human rights commission", "international human rights law", " what is human right",
                                               "human rights watch", "sexual rights", "intellectual property rights", "intellectual property", "features of human rights",
                                               "examples of human rights", "importance of human rights", "universal declaration of human rights"]},
                                   {"Corporation": ["bangladeshi broadcasting corporation", "BEXIMCO Group", "Bashundhara Group", "Meghna Group of Industries", "Square Group","ACI Limited", "Pran-RFL Group",
                                                "Abul Khair Group", "City Group", "Transcom Group", "Akij Group", "T K Group of Industries","Ananda Group","Partex Group","Rahimafrooz Group","LafargeHolcim Bangladesh Limited","Grameenphone", "Robi Axiata Limited",
                                                "Summit Group", "United Group", "Olympic Industries Limited"]},
                                   {"War": ["world war", "israel", "israel war", "ukraine war", "russia war", "what is war", "war news", "russia ukraine war", "russia ukraine",
                                            "civil war", "war in bangladesh", "bangladesh war", "war movies", "god of war", "cold war", "first world war", "world war 2",
                                            "russia news", "russia war news", "Rohingya Refugee Crisis"]
                                    }]}

health_terms = {"Health" : [{"Nursing": ["nursing diagnosis", "nursing care plan", "what is nursing", "nursing process", "surgical nursing", "medical surgical nursing", "nursing questions and answers",
                                         "nursing assessment", "nanda", "nanda nursing diagnosis", "nursing research", "clinical nursing", "nursing school", "medical surgical nursing pdf", "nursing care plan pdf",
                                         "nursing intervention", "nursing home", "nursing ethics", "pediatric nursing", "nursing process pdf", "basic nursing", "nursing procedure", "what is nursing pdf"]},
                            {"Nutrition": ["nutrition food", "nutrition pdf", "what is nutrition", "nutrition jobs", "human nutrition", "nutrition security", "food science and nutrition", "nutrition ppt",
                                           "animal nutrition", "malnutrition", "nutrition international", "nutrition meaning", "loza nutrition", "milk nutrition", "avocado nutrition", "banana nutrition",
                                           "ethio fitness and nutrition", "maternal and child nutrition", "oats nutrition", "health and nutrition", "nutrition officer", "community nutrition", "nutrition exam",
                                           "oats", "types of nutrition", "peanut", "beans nutrition", "potato nutrition"]},
                            {"Skin": ["what is skin", "dry skin", "skin care", "skin disease", "skin infection", "cerave", "acne", "skin rash", "moisturizer", "skin type",
                                      "skin cancer", "sensitive skin", "itchy skin", "skin allergy", "sunscreen for oily skin", "types of skin", "skin tone", "skin itching",
                                      "skin diseases", "cerave for oily skin", "cerave cleanser", "vitamin c", "vitamin e" ]
                             }]}

travel_terms = {"Travel": [{"Airline": ["bangladeshi airline", "bangladesh airline", "bangladesh vacancy", "bangladesh airline result", "bangladesh airline vacancy", "airline booking", "bangladesh airline phone number",
                                        "bangladeshi airlines ticket", "bangladesh airline ticket", "airline tickets", "bangladeshi airline booking", "bangladeshi airline vacancy result", "indian airline", "indian airline app"]},
                           {"Airport": ["Hazrat Shahjalal International Airport","Shah Amanat International Airport", "Osmani International Airport", "Cox's Bazar Airport", "Jessore Airport", "Saidpur Airport", "Barisal Airport",
                                        "airport ticket", "indian airport", "airport vacancy"]},
                           {"Flight": ["bangladeshi flight", "airlines", "bangladeshi airlines flight", "flight status", "flight ticket", "flight tracker", "flight radar", "bangladeshi airlines flight schedule", "booking flight",
                                       "flight booking", "google flight", "bangladeshi airlines ticket", "book flight", "flight check", "flight radar 24", "cheap flight", "bangladeshi airlines ticket price" , "bangladeshi airlines flight booking"]},
                           {"Driving": ["driving license", "car driving", "driving license", "driving test", "driving license in bangladesh", "car games", "car driving games", "international driving license", "manual car driving",
                                        "driving license test", "driving license check online", "city car driving", "check driving license number online", "car driving training"]},
                           {"Hotels": ["Pan Pacific Sonargaon Dhaka", "The Westin Dhaka", "Radisson Blu Dhaka Water Garden","InterContinental Dhaka", "Le Méridien Dhaka","Six Seasons Hotel","Hotel Sarina Dhaka","Amari Dhaka","Sayeman Beach Resort",
                                        "Dusai Resort & Spa", "best hotels in dhaka", "hotels in dhaka", "booking", "cheap hotels in dhaka"]
                            }]}

Show code cell source

Hide code cell source

df = pd.DataFrame()


for dicts in [finance_terms, business_terms, law_terms, health_terms, travel_terms]:
    for category, subcategories in dicts.items():
        for subcategory_dict in subcategories:
            for subcategory, terms in subcategory_dict.items():
                for term in terms:
                    filters = {
                        'terms': term,
                        'restrictions_geo': "BD",
                        'restrictions_startDate': "2024-01",
                        'restrictions_endDate': "2024-10"
                    }

                    try:
                        result = google.get('getGraph', filters)

                        value = sum(point['value'] for point in result['lines'][0]['points']) / len(result['lines'][0]['points'])

                        df = pd.concat(
                            [df, pd.DataFrame({
                                'Category': [category],
                                'Subcategory': [subcategory],
                                'Term': [term],
                                'Value': [value]
                            })],
                            ignore_index=True
                        )

                        print(f"Data obtained for {term} in {subcategory}.")
                    except Exception as e:
                        print(f"Error when processing {term} in {subcategory}: {e}")

print(df.head())

Data obtained for bangladesh bank in Bank.
Data obtained for bank of bangladesh in Bank.
Data obtained for commercial bank in Bank.
Data obtained for bangladesh commercial bank in Bank.
Data obtained for commercial bank of bangladesh in Bank.
Data obtained for Sonali Bank PLC in Bank.
Data obtained for Janata Bank PLC in Bank.
Data obtained for Agrani Bank PLC in Bank.
Data obtained for Rupali Bank PLC in Bank.
Data obtained for BRAC Bank PLC in Bank.
Data obtained for Dutch-Bangla Bank PLC in Bank.
Data obtained for Islami Bank Bangladesh PLC in Bank.
Data obtained for Standard Chartered Bank in Bank.
Data obtained for Pubali Bank PLC in Bank.
Data obtained for bank rate today in Bank.
Data obtained for what is bank in Bank.
Data obtained for national bank of bangladesh in Bank.
Data obtained for today bank exchange rate in Bank.
Data obtained for bank account in Bank.
Data obtained for exchange rate today in Bank.
Data obtained for mobile banking app in Mobile banking.
Data obtained for mobile banking code in Mobile banking.
Data obtained for mobile banking app download in Mobile banking.
Data obtained for Sonali e-Wallet in Mobile banking.
Data obtained for Janata mobile in Mobile banking.
Data obtained for Islami mobile in Mobile banking.
Data obtained for bangladesh currency in Currency.
Data obtained for currency exchange in Currency.
Data obtained for dollar in Currency.
Data obtained for dollar currency in Currency.
Data obtained for exchange rate in Currency.
Data obtained for euro currency in Currency.
Data obtained for foreign currency in Currency.
Data obtained for what is mining in Mining.
Data obtained for bitcoin in Mining.
Data obtained for bitcoin mining in Mining.
Data obtained for mining in bangladesh in Mining.
Data obtained for mining meaning in Mining.
Data obtained for crypto mining in Mining.
Data obtained for data mining in Mining.
Data obtained for gold mining in Mining.
Data obtained for usdt mining in Mining.
Data obtained for ton mining in Mining.
Data obtained for cloud mining in Mining.
Data obtained for crypto mining app in Mining.
Data obtained for what is bitcoin mining in Mining.
Data obtained for what is data mining in Mining.
Data obtained for bitcoin mining app in Mining.
Data obtained for what is bitcoin in Mining.
Data obtained for bitcoin mining free in Mining.
Data obtained for ton coin mining in Mining.
Data obtained for mining engineering in Mining.
Data obtained for free bitcoin mining in Mining.
Data obtained for logistics management in Logistics.
Data obtained for supply chain management in Logistics.
Data obtained for logistics jobs in Logistics.
Data obtained for what is logistics in Logistics.
Data obtained for transport and logistics in Logistics.
Data obtained for logistics meaning in Logistics.
Data obtained for ministry of transport and logistics in Logistics.
Data obtained for inbound logistics in Logistics.
Data obtained for social media in Media.
Data obtained for what is media in Media.
Data obtained for ATN Bangla in Media.
Data obtained for Prothom Alo in Media.
Data obtained for what is communication in Communication.
Data obtained for communication skills in Communication.
Data obtained for business communication in Communication.
Data obtained for data communication in Communication.
Data obtained for effective communication in Communication.
Data obtained for communication english in Communication.
Data obtained for communication technology in Communication.
Data obtained for communication media in Communication.
Data obtained for types of communication in Communication.
Data obtained for information in Communication.
Data obtained for communication meaning in Communication.
Data obtained for wireless communication in Communication.
Data obtained for communication process in Communication.
Data obtained for communication skill in Communication.
Data obtained for health communication in Communication.
Data obtained for mobile communication in Communication.
Data obtained for verbal communication in Communication.
Data obtained for process of communication in Communication.
Data obtained for define communication in Communication.
Data obtained for type of communication in Communication.
Data obtained for meaning of communication in Communication.
Data obtained for communication barriers in Communication.
Data obtained for good communication in Communication.
Data obtained for communication skills pdf in Communication.
Data obtained for business communication pdf in Communication.
Data obtained for science in Technology.
Data obtained for what is technology in Technology.
Data obtained for science and technology in Technology.
Data obtained for information technology in Technology.
Data obtained for emerging technology in Technology.
Data obtained for digital technology in Technology.
Data obtained for new technology in Technology.
Data obtained for Bangladesh University of Engineering and Technology in Technology.
Data obtained for International University of Business Agriculture and Technology in Technology.
Data obtained for ai technology in Technology.
Data obtained for define technology in Technology.
Data obtained for blockchain technology in Technology.
Data obtained for what is computer in Technology.
Data obtained for what is digital technology in Technology.
Data obtained for computer science in Technology.
Data obtained for advantage of technology in Technology.
Data obtained for educational technology in Technology.
Data obtained for information communication technology in Technology.
Data obtained for ministry of innovation and technology in Technology.
Data obtained for what is ethics in Ethics.
Data obtained for professional ethics in Ethics.
Data obtained for morality in Ethics.
Data obtained for business ethics in Ethics.
Data obtained for virtue ethics in Ethics.
Data obtained for ethics and morality in Ethics.
Data obtained for ethics meaning in Ethics.
Data obtained for code of ethics in Ethics.
Data obtained for medical ethics in Ethics.
Data obtained for health ethics in Ethics.
Data obtained for research ethics in Ethics.
Data obtained for work ethics in Ethics.
Data obtained for principles of ethics in Ethics.
Data obtained for what is the difference between in Ethics.
Data obtained for normative ethics in Ethics.
Data obtained for types of ethics in Ethics.
Data obtained for ethics example in Ethics.
Data obtained for what is ethics pdf in Ethics.
Data obtained for define ethics in Ethics.
Data obtained for environmental ethics in Ethics.
Data obtained for what is morality in Ethics.
Data obtained for applied ethics in Ethics.
Data obtained for nursing ethics in Ethics.
Data obtained for what is virtue ethics in Ethics.
Data obtained for difference between ethics and morality in Ethics.
Data obtained for human rights in Rights.
Data obtained for what is rights in Rights.
Data obtained for human rights in bangladesh in Rights.
Data obtained for what is human rights in Rights.
Data obtained for all in Rights.
Data obtained for human rights law in Rights.
Data obtained for 2024 in Rights.
Data obtained for what are human rights in Rights.
Data obtained for reserved in Rights.
Data obtained for civil rights in Rights.
Data obtained for all rights reserved in Rights.
Data obtained for democratic rights in Rights.
Data obtained for copyright in Rights.
Data obtained for bangladeshi human rights commission in Rights.
Data obtained for international human rights law in Rights.
Data obtained for  what is human right in Rights.
Data obtained for human rights watch in Rights.
Data obtained for sexual rights in Rights.
Data obtained for intellectual property rights in Rights.
Data obtained for intellectual property in Rights.
Data obtained for features of human rights in Rights.
Data obtained for examples of human rights in Rights.
Data obtained for importance of human rights in Rights.
Data obtained for universal declaration of human rights in Rights.
Data obtained for bangladeshi broadcasting corporation in Corporation.
Data obtained for BEXIMCO Group in Corporation.
Data obtained for Bashundhara Group in Corporation.
Data obtained for Meghna Group of Industries in Corporation.
Data obtained for Square Group in Corporation.
Data obtained for ACI Limited in Corporation.
Data obtained for Pran-RFL Group in Corporation.
Data obtained for Abul Khair Group in Corporation.
Data obtained for City Group in Corporation.
Data obtained for Transcom Group in Corporation.
Data obtained for Akij Group in Corporation.
Data obtained for T K Group of Industries in Corporation.
Data obtained for Ananda Group in Corporation.
Data obtained for Partex Group in Corporation.
Data obtained for Rahimafrooz Group in Corporation.
Data obtained for LafargeHolcim Bangladesh Limited in Corporation.
Data obtained for Grameenphone in Corporation.
Data obtained for Robi Axiata Limited in Corporation.
Data obtained for Summit Group in Corporation.
Data obtained for United Group in Corporation.
Data obtained for Olympic Industries Limited in Corporation.
Data obtained for world war in War.
Data obtained for israel in War.
Data obtained for israel war in War.
Data obtained for ukraine war in War.
Data obtained for russia war in War.
Data obtained for what is war in War.
Data obtained for war news in War.
Data obtained for russia ukraine war in War.
Data obtained for russia ukraine in War.
Data obtained for civil war in War.
Data obtained for war in bangladesh in War.
Data obtained for bangladesh war in War.
Data obtained for war movies in War.
Data obtained for god of war in War.
Data obtained for cold war in War.
Data obtained for first world war in War.
Data obtained for world war 2 in War.
Data obtained for russia news in War.
Data obtained for russia war news in War.
Data obtained for Rohingya Refugee Crisis in War.
Data obtained for nursing diagnosis in Nursing.
Data obtained for nursing care plan in Nursing.
Data obtained for what is nursing in Nursing.
Data obtained for nursing process in Nursing.
Data obtained for surgical nursing in Nursing.
Data obtained for medical surgical nursing in Nursing.
Data obtained for nursing questions and answers in Nursing.
Data obtained for nursing assessment in Nursing.
Data obtained for nanda in Nursing.
Data obtained for nanda nursing diagnosis in Nursing.
Data obtained for nursing research in Nursing.
Data obtained for clinical nursing in Nursing.
Data obtained for nursing school in Nursing.
Data obtained for medical surgical nursing pdf in Nursing.
Data obtained for nursing care plan pdf in Nursing.
Data obtained for nursing intervention in Nursing.
Data obtained for nursing home in Nursing.
Data obtained for nursing ethics in Nursing.
Data obtained for pediatric nursing in Nursing.
Data obtained for nursing process pdf in Nursing.
Data obtained for basic nursing in Nursing.
Data obtained for nursing procedure in Nursing.
Data obtained for what is nursing pdf in Nursing.
Data obtained for nutrition food in Nutrition.
Data obtained for nutrition pdf in Nutrition.
Data obtained for what is nutrition in Nutrition.
Data obtained for nutrition jobs in Nutrition.
Data obtained for human nutrition in Nutrition.
Data obtained for nutrition security in Nutrition.
Data obtained for food science and nutrition in Nutrition.
Data obtained for nutrition ppt in Nutrition.
Data obtained for animal nutrition in Nutrition.
Data obtained for malnutrition in Nutrition.
Data obtained for nutrition international in Nutrition.
Data obtained for nutrition meaning in Nutrition.
Data obtained for loza nutrition in Nutrition.
Data obtained for milk nutrition in Nutrition.
Data obtained for avocado nutrition in Nutrition.
Data obtained for banana nutrition in Nutrition.
Data obtained for ethio fitness and nutrition in Nutrition.
Data obtained for maternal and child nutrition in Nutrition.
Data obtained for oats nutrition in Nutrition.
Data obtained for health and nutrition in Nutrition.
Data obtained for nutrition officer in Nutrition.
Data obtained for community nutrition in Nutrition.
Data obtained for nutrition exam in Nutrition.
Data obtained for oats in Nutrition.
Data obtained for types of nutrition in Nutrition.
Data obtained for peanut in Nutrition.
Data obtained for beans nutrition in Nutrition.
Data obtained for potato nutrition in Nutrition.
Data obtained for what is skin in Skin.
Data obtained for dry skin in Skin.
Data obtained for skin care in Skin.
Data obtained for skin disease in Skin.
Data obtained for skin infection in Skin.
Data obtained for cerave in Skin.
Data obtained for acne in Skin.
Data obtained for skin rash in Skin.
Data obtained for moisturizer in Skin.
Data obtained for skin type in Skin.
Data obtained for skin cancer in Skin.
Data obtained for sensitive skin in Skin.
Data obtained for itchy skin in Skin.
Data obtained for skin allergy in Skin.
Data obtained for sunscreen for oily skin in Skin.
Data obtained for types of skin in Skin.
Data obtained for skin tone in Skin.
Data obtained for skin itching in Skin.
Data obtained for skin diseases in Skin.
Data obtained for cerave for oily skin in Skin.
Data obtained for cerave cleanser in Skin.
Data obtained for vitamin c in Skin.
Data obtained for vitamin e in Skin.
Data obtained for bangladeshi airline in Airline.
Data obtained for bangladesh airline in Airline.
Data obtained for bangladesh vacancy in Airline.
Data obtained for bangladesh airline result in Airline.
Data obtained for bangladesh airline vacancy in Airline.
Data obtained for airline booking in Airline.
Data obtained for bangladesh airline phone number in Airline.
Data obtained for bangladeshi airlines ticket in Airline.
Data obtained for bangladesh airline ticket in Airline.
Data obtained for airline tickets in Airline.
Data obtained for bangladeshi airline booking in Airline.
Data obtained for bangladeshi airline vacancy result in Airline.
Data obtained for indian airline in Airline.
Data obtained for indian airline app in Airline.
Data obtained for Hazrat Shahjalal International Airport in Airport.
Data obtained for Shah Amanat International Airport in Airport.
Data obtained for Osmani International Airport in Airport.
Data obtained for Cox's Bazar Airport in Airport.
Data obtained for Jessore Airport in Airport.
Data obtained for Saidpur Airport in Airport.
Data obtained for Barisal Airport in Airport.
Data obtained for airport ticket in Airport.
Data obtained for indian airport in Airport.
Data obtained for airport vacancy in Airport.
Data obtained for bangladeshi flight in Flight.
Data obtained for airlines in Flight.
Data obtained for bangladeshi airlines flight in Flight.
Data obtained for flight status in Flight.
Data obtained for flight ticket in Flight.
Data obtained for flight tracker in Flight.
Data obtained for flight radar in Flight.
Data obtained for bangladeshi airlines flight schedule in Flight.
Data obtained for booking flight in Flight.
Data obtained for flight booking in Flight.
Data obtained for google flight in Flight.
Data obtained for bangladeshi airlines ticket in Flight.
Data obtained for book flight in Flight.
Data obtained for flight check in Flight.
Data obtained for flight radar 24 in Flight.
Data obtained for cheap flight in Flight.
Data obtained for bangladeshi airlines ticket price in Flight.
Data obtained for bangladeshi airlines flight booking in Flight.
Data obtained for driving license in Driving.
Data obtained for car driving in Driving.
Data obtained for driving license in Driving.
Data obtained for driving test in Driving.
Data obtained for driving license in bangladesh in Driving.
Data obtained for car games in Driving.
Data obtained for car driving games in Driving.
Data obtained for international driving license in Driving.
Data obtained for manual car driving in Driving.
Data obtained for driving license test in Driving.
Data obtained for driving license check online in Driving.
Data obtained for city car driving in Driving.
Data obtained for check driving license number online in Driving.
Data obtained for car driving training in Driving.
Data obtained for Pan Pacific Sonargaon Dhaka in Hotels.
Data obtained for The Westin Dhaka in Hotels.
Data obtained for Radisson Blu Dhaka Water Garden in Hotels.
Data obtained for InterContinental Dhaka in Hotels.
Data obtained for Le Méridien Dhaka in Hotels.
Data obtained for Six Seasons Hotel in Hotels.
Data obtained for Hotel Sarina Dhaka in Hotels.
Data obtained for Amari Dhaka in Hotels.
Data obtained for Sayeman Beach Resort in Hotels.
Data obtained for Dusai Resort & Spa in Hotels.
Data obtained for best hotels in dhaka in Hotels.
Data obtained for hotels in dhaka in Hotels.
Data obtained for booking in Hotels.
Data obtained for cheap hotels in dhaka in Hotels.
  Category Subcategory                           Term      Value
0  Finance        Bank                bangladesh bank  30.000000
1  Finance        Bank             bank of bangladesh  60.750000
2  Finance        Bank                commercial bank  55.568182
3  Finance        Bank     bangladesh commercial bank  38.159091
4  Finance        Bank  commercial bank of bangladesh   8.454545

Finally, we visualizes the hierarchical relationship between different categories, subcategories, and terms, with their corresponding values, in an interactive and visually appealing way. The chart helps to explore trends and patterns in the data for Bangladesh.

Show code cell source

Hide code cell source

import plotly.express as px
import plotly.io as pio
from plotly.offline import init_notebook_mode

# Initialize notebook mode
init_notebook_mode(connected=True)

# Set the renderer
pio.renderers.default = "notebook"

fig = px.sunburst(
    df,
    path=['Category', 'Subcategory', 'Term'],
    values='Value',
    color='Category',
    title='Flourish interactive of Bangladesh'
)

fig.update_layout(
    width=800,
    height=600
)

fig.show()
