Flood PAHM Disruption - PAK | vector analysis#
Health Emergencies Preparedness and Response Program (HEPR)#
This notebook is a template workflow to collect data and prepare the main data to perform a baseline physical accessibility analysis to health facilities.
It uses various tools developed by the World Bank’s Geospatial Operations Support Team (GOST).
This notebook focuses on a vector-based implementation of market access, using the road network from OpenStreetMap Project.
Additionaly, it uses population data from World Pop (Unconstrained UN-Adjusted 2020, 1km resolution).
Data Download Links#
Setup#
Import packages required for the analysis
# System
import sys
import os
from os.path import join, expanduser
from pathlib import Path
# Avoid warnings to pop up
import warnings
warnings.filterwarnings('ignore')
# Visualization tools
# import folium as flm
import matplotlib.pyplot as plt
import matplotlib.colors as colors
import matplotlib.gridspec as gridspec
from rasterio.plot import plotting_extent
from rasterio.plot import show
from mpl_toolkits.axes_grid1 import make_axes_locatable
import contextily as ctx
import cartopy
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import seaborn as sns
os.environ['CARTOPY_USER_BACKGROUNDS'] = '/home/jupyter-wb618081/Python/Backgrounds/'
# Processing
import numpy as np
import geopandas as gpd
import pandas as pd
from gadm import GADMDownloader
# Raster
import rasterio as rio
from rasterio.features import shapes
from shapely.geometry import box
from rasterio.features import geometry_mask
from rasterstats import zonal_stats
from shapely.geometry import Polygon, box, Point
from shapely.geometry import mapping
import skimage.graph as graph
from scipy.signal import convolve2d
# Graph
import pickle
import networkx as nx
import osmnx as ox
# for facebook data
# from pyquadkey2 import quadkey
# Parallelization
import multiprocessing
import dask
import dask_geopandas as dask_gpd
import rioxarray as rioxr
# Define your path to the Repositories
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'gostrocks', 'src'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOSTNets_Raster', 'src'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOSTnets'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOST_Urban', 'src', 'GOST_Urban'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'health-equity-diagnostics', 'src', 'modules'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'INFRA_SAP'))
import GOSTnets as gn
from GOSTnets.load_osm import *
import GOSTRocks.rasterMisc as rMisc
from GOSTRocks.misc import get_utm
import GOSTNetsRaster.market_access as ma
import UrbanRaster as urban
from infrasap import aggregator
from infrasap import osm_extractor as osm
from utils import download_osm_shapefiles
# auto reload
%load_ext autoreload
%autoreload 2
Define below the local folder where you are located
data_dir = join(expanduser("/home/jupyter-wb618081"), 'data')
scratch_dir = join(expanduser("/home/jupyter-wb618081"), 'Health-Access-Metrics')
out_path = join(expanduser("/home/jupyter-wb618081"), 'Health-Access-Metrics', 'Output')
## Function for creating a path, if needed ##
def checkDir(out_path):
if not os.path.exists(out_path):
os.makedirs(out_path)
Data Preparation#
Administrative boundaries#
epsg = "EPSG:4326"
epsg_utm = "EPSG:32736"
country = 'Pakistan'
iso = 'PAK'
downloader = GADMDownloader(version="4.0")
adm0 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=0)
adm1 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=1)
adm2 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=2)
adm1.rename(columns={"NAME_1":"ADM1"}, inplace=True)
adm2.rename(columns={"NAME_1":"ADM1","NAME_2":"ADM2"}, inplace=True)
# iso = 'MWI'
# adm0_path = join(expanduser("R:/"), 'Data', 'GLOBAL/ADMIN', f'Admin0_Polys.shp')
# adm0 = gpd.read_file(adm0_path)
# adm0 = adm0[adm0["ISO3"] == "MWI"].to_crs(4326)
# iso = 'MWI'
# adm2_path = join(expanduser("R:/"), 'Data', 'GLOBAL/ADMIN', f'Admin2_Polys.shp')
# adm2 = gpd.read_file(adm2_path)
# adm2 = adm2[adm2["ISO3"] == "MWI"].to_crs(4326)
Population (origin)#
# wp_path = join(expanduser("R:/"), 'Data', 'GLOBAL/Population/WorldPop_PPP_2020/MOSAIC_ppp_prj_2020', f'ppp_prj_2020_{iso}.tif') # Download from link above
wp_path = join(data_dir, f'ppp_2020_1km_Aggregated.tif') # Download from link above
pop_surf = rio.open(wp_path)
Health Facilities (destinations)#
# BHU (Basic Health Unit)
# CD/GD (Civil Dispensary)
# RHC (Rural Health Center)
# SHC (Secondary Health Care)
hf_path = join(data_dir, iso, "health_facilities/", 'pakistan.csv')
df_hf = pd.read_csv(hf_path, header = 0)
df_hf = df_hf[["X", "Y", "osm_id", "amenity"]]; df_hf.rename(columns = {"osm_id": "ID", "amenity": "Facility Type"}, inplace = True)
display('The following categories and numbers of Health Facilities are considered to perform the analysis: ')
display(df_hf["Facility Type"].value_counts())
# Consider all health facilities and hospitals
df_hf_hosp = df_hf.loc[df_hf['Facility Type'] == "hospital"]
'The following categories and numbers of Health Facilities are considered to perform the analysis: '
hospital 1673
clinic 633
pharmacy 528
doctors 187
dentist 41
Name: Facility Type, dtype: int64
# Convert from pandas.Dataframe to Geopandas.dataframe
geodf_hf = gpd.GeoDataFrame(
df_hf, geometry=gpd.points_from_xy(df_hf.X, df_hf.Y), crs=epsg
)
geodf_hf_hosp = gpd.GeoDataFrame(
df_hf_hosp, geometry=gpd.points_from_xy(df_hf_hosp.X, df_hf_hosp.Y), crs=epsg
)
# Clean the geodf
geodf_hf = geodf_hf[['ID', 'Facility Type', 'geometry']]; #geodf_hf.loc[:, 'ID'] = df_hf.index
geodf_hf_hosp = geodf_hf_hosp[['ID', 'Facility Type', 'geometry']]; # geodf_hf_hosp.loc[:, 'ID'] = df_hf_hosp.index
geodf_hf = geodf_hf[~geodf_hf.geometry.is_empty]
geodf_hf_hosp = geodf_hf_hosp[~geodf_hf_hosp.geometry.is_empty]
Assure correspondence of ADM1 and ADM2 names in Health facilities and official Administrative Units
geodf_hf = gpd.sjoin(geodf_hf, adm1[["ADM1", "geometry"]], op='within', how='left')
geodf_hf.drop(columns = ["index_right"], inplace = True)
geodf_hf_hosp = gpd.sjoin(geodf_hf_hosp, adm1[["ADM1", "geometry"]], op='within', how='left')
geodf_hf_hosp.drop(columns = ["index_right"], inplace = True)
geodf_hf = gpd.sjoin(geodf_hf, adm2[["ADM2", "geometry"]], op='within', how='left')
geodf_hf.drop(columns = ["index_right"], inplace = True)
geodf_hf_hosp = gpd.sjoin(geodf_hf_hosp, adm2[["ADM2", "geometry"]], op='within', how='left')
geodf_hf_hosp.drop(columns = ["index_right"], inplace = True)
Flood#
Here, we import Fathom flood data (.tif) of fluvial floods with different return periods.
This data represent and mimic the climate impact on infrastructure and the disruption of the accessibility to health facilities.
# Import multiple rasterio .tif file as a dictionary
# Keys are return periods
# Values are rasterio arrays
# inland waters and oceans: 999
# not-flooded areas: -999 (Fluvial)
# not-flooded areas: 0 (Pluvial)
# Other values represent the flood depth (in m)
flood_fluvial_path = join(data_dir, iso,'FLOOD_SSBN','fluvial_undefended')
flood_pluvial_path = join(data_dir, iso,'FLOOD_SSBN','pluvial')
files=os.listdir(flood_fluvial_path)
flood_dict_fluvial = {}
for file in files:
key = file.split('_')[1].split('.')[0]
value = rio.open(join(flood_fluvial_path,file)) #.read(1)
flood_dict_fluvial[key] = value
files=os.listdir(flood_pluvial_path)
flood_dict_pluvial = {}
for file in files:
key = file.split('_')[1].split('.')[0]
value = rio.open(join(flood_pluvial_path,file)) #.read(1)
flood_dict_pluvial[key] = value
# Preserve the maximum flood depth
flood_dict = {}
for f,key in enumerate(flood_dict_pluvial.keys()):
out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key +'.tif')
if os.path.isfile(out_flood_path):
value = rio.open(out_flood_path)
flood_dict[key] = value
else:
out_meta = flood_dict_pluvial[key].meta
flood_max = np.fmax(flood_dict_fluvial[key].read(1),flood_dict_pluvial[key].read(1))
flood_dict[key] = flood_max
# flood_dict[key][flood_dict[key] == 0] = -999
# Write the output raster
out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key +'.tif')
with rio.open(out_flood_path, 'w', **out_meta) as dst:
dst.write(flood_max, 1)
# Read the output raster
value = rio.open(out_flood_path)
flood_dict[key] = value
# Free up memory
for f,key in enumerate(flood_dict.keys()):
del flood_dict_fluvial[key]
del flood_dict_pluvial[key]
Friction Surface#
Process the travel cost surface from the Malaria Atlas Project, clip the raster to our region of interest.
# Only the first time, clip the travel friction surface to the country of interest
out_travel_surface = join(data_dir, iso, f"travel_surface_motorized_{iso}.tif")
if not os.path.isfile(out_travel_surface):
gfs_path = join(data_dir, '2020_motorized_friction_surface.geotiff')
gfs_rio = rio.open(gfs_path)
rMisc.clipRaster(gfs_rio, adm0, out_travel_surface, crop=False)
# Import the clipped friction surface
travel_surf = rio.open(out_travel_surface) #.read(1)
print(travel_surf.res)
print(pop_surf.res)
(0.008333333333333333, 0.008333333333333333)
(0.0083333333, 0.0083333333)
Preprocessing#
Align the POPULATION & FLOOD raster to the friction surface, ensuring that they have the same extent and resolution.
# If the Standardized data are already present, skip, else generate them
def checkDir(out_path):
if not os.path.exists(out_path):
os.makedirs(out_path)
checkDir(join(out_path, iso))
out_pop_surface_std = join(out_path, iso, "WP_2020_1km_STD.tif")
if not os.path.isfile(out_pop_surface_std):
rMisc.standardizeInputRasters(pop_surf, travel_surf, out_pop_surface_std, resampling_type="nearest")
checkDir(join(out_path, iso, "flood"))
for f,key in enumerate(flood_dict.keys()):
# out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key)
out_flood_std = join(out_path, iso, 'flood', "STD_" + 'Fmax_'+ key +'.tif')
if os.path.isfile(out_flood_std):
None
else:
rMisc.standardizeInputRasters(flood_dict[key], travel_surf, out_flood_std, resampling_type="nearest")
Correct the reprojected FLOOD raster extension, ensuring that lands are not covered by inland and open waters
# Import multiple rasterio .tif file as a dictionary
# Keys are return periods
# Values are rasterio arrays
flood_path = join(out_path, iso, 'flood')
files=os.listdir(flood_path)
flood_dict_std = {}
for file in files:
if file.startswith('STD') == True:
key = file.split('_')[2].split('.')[0]
value = rio.open(join(flood_path,file)) #.read(1)
flood_dict_std[key] = value
display(flood_dict_std["1in10"].read_crs())
CRS.from_epsg(4326)
Origins#
Prepare a standard grid (pandas.Dataframe) using each cell from the 1km World Pop raster.
pop_surf = rio.open(out_pop_surface_std)
pop = pop_surf.read(1, masked=False)
# Create a population df from population surface
indices = list(np.ndindex(pop.shape))
xys = [Point(pop_surf.xy(ind[0], ind[1])) for ind in indices]
res_df = pd.DataFrame({
'spatial_index': indices,
'xy': xys,
'pop': pop.flatten()
})
res_df['pointid'] = res_df.index
res_df
| spatial_index | xy | pop | pointid | |
|---|---|---|---|---|
| 0 | (0, 0) | POINT (60.89583333333332 37.09583333333333) | 8.048295 | 0 |
| 1 | (0, 1) | POINT (60.904166666666654 37.09583333333333) | 7.362457 | 1 |
| 2 | (0, 2) | POINT (60.91249999999999 37.09583333333333) | 9.171885 | 2 |
| 3 | (0, 3) | POINT (60.92083333333332 37.09583333333333) | 9.375657 | 3 |
| 4 | (0, 4) | POINT (60.92916666666665 37.09583333333333) | 8.939575 | 4 |
| ... | ... | ... | ... | ... |
| 3272275 | (1607, 2030) | POINT (77.81249999999999 23.704166666666666) | 212.114243 | 3272275 |
| 3272276 | (1607, 2031) | POINT (77.82083333333333 23.704166666666666) | 141.163818 | 3272276 |
| 3272277 | (1607, 2032) | POINT (77.82916666666665 23.704166666666666) | 128.055283 | 3272277 |
| 3272278 | (1607, 2033) | POINT (77.83749999999998 23.704166666666666) | 100.614090 | 3272278 |
| 3272279 | (1607, 2034) | POINT (77.84583333333332 23.704166666666666) | 86.039619 | 3272279 |
3272280 rows × 4 columns

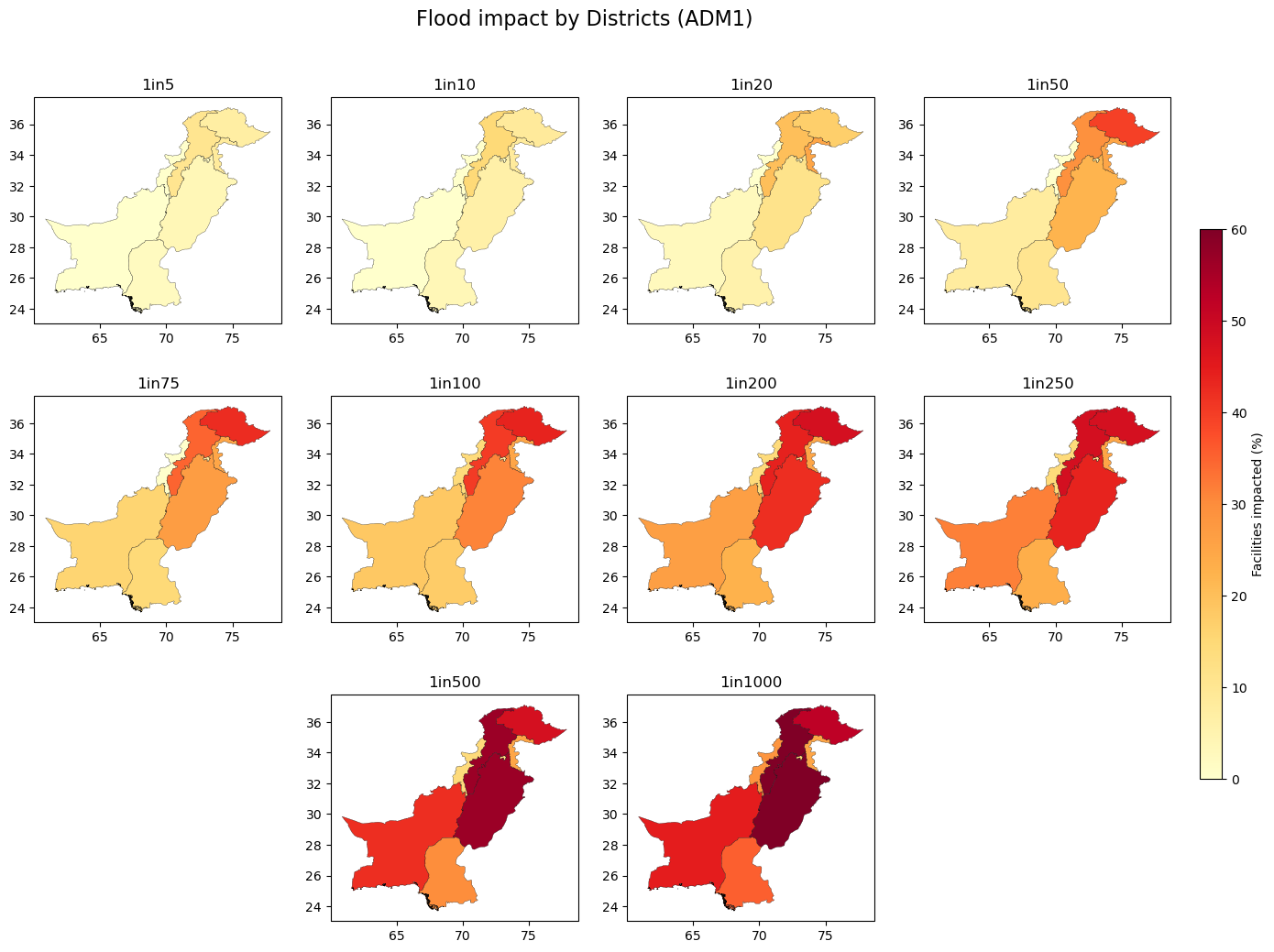

Flood impact on Health facilities#
Consider the raw Fmax flood rasters, thus exploiting the original FATHOM dataset resolution
For every Standardized Flood layer (Return Period), extract Flood Depth on Health Facilities location
# Extract flood depth at every facility location
for key in flood_dict.keys():
coords = [(x,y) for x, y in zip(geodf_hf_hosp.geometry.x, geodf_hf_hosp.geometry.y)]
geodf_hf_hosp[key] = [x[0] for x in flood_dict_rio[key].sample(coords)]
coords = [(x,y) for x, y in zip(geodf_hf.geometry.x, geodf_hf.geometry.y)]
geodf_hf[key] = [x[0] for x in flood_dict_rio[key].sample(coords)]
# Identify Flooded and not Flooded Facilities
flood_geodf_hf_hosp = {}
dry_geodf_hf_hosp = {}
flood_geodf_hf = {}
dry_geodf_hf = {}
for key in flood_dict.keys():
flood_geodf_hf_hosp[key] = geodf_hf_hosp[geodf_hf_hosp[key] > 0.2]
dry_geodf_hf_hosp[key] = geodf_hf_hosp[geodf_hf_hosp[key] == 0]
flood_geodf_hf[key] = geodf_hf[geodf_hf[key] > 0.2]
dry_geodf_hf[key] = geodf_hf[geodf_hf[key] == 0]
Summary statistics#
For every Flood Scenario (RP):
Number and % of Health facilities disrupted by Facility Type
Number and % of Health facilities disrupted by ADM1 Districts
# Reorder Flood Return Periods in geodf columns
def sort_flood_col(gdf, str_start, str_sep):
# Define str_start and str_sep as the strings that identify the start of column names and the separator with the numerical value
fd_columns = [col for col in gdf.columns if col.startswith(str_start)]
non_fd_columns = [col for col in gdf.columns if not col.startswith(str_start)]
fd_num = [(int(col.split(str_sep)[1]), col) for col in fd_columns]
fd_col_sort = [col for _, col in sorted(fd_num)]
new_column_order = non_fd_columns + fd_col_sort
# Reorder the DataFrame columns
gdf = gdf[new_column_order]
return(gdf)
geodf_hf = sort_flood_col(geodf_hf, "1in", "in")
geodf_hf_hosp = sort_flood_col(geodf_hf_hosp, "1in", "in")
# % of Facilities disrupted, by Facility Type
stats1 = geodf_hf[geodf_hf != 0].groupby("Facility Type").count().drop(columns = ["ADM1", "geometry"]).rename(columns={'ID': 'Total n°'})
fd_columns = [col for col in stats1.columns if col.startswith("1in")]
for col in fd_columns:
stats1[col] = (stats1[col]/stats1["Total n°"])*100
stats1[fd_columns] = stats1[fd_columns].round(2)
display(stats1)
| Total n° | 1in5 | 1in10 | 1in20 | 1in50 | 1in75 | 1in100 | 1in200 | 1in250 | 1in500 | 1in1000 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Facility Type | |||||||||||
| clinic | 596 | 2.68 | 4.70 | 7.55 | 14.09 | 19.13 | 21.31 | 26.68 | 27.68 | 34.56 | 43.12 |
| dentist | 39 | 7.69 | 7.69 | 15.38 | 17.95 | 20.51 | 23.08 | 25.64 | 25.64 | 33.33 | 38.46 |
| doctors | 123 | 9.76 | 13.01 | 21.14 | 37.40 | 41.46 | 42.28 | 47.97 | 50.41 | 53.66 | 59.35 |
| hospital | 1352 | 3.25 | 5.18 | 8.88 | 16.27 | 20.04 | 23.74 | 32.17 | 33.80 | 43.42 | 49.63 |
| pharmacy | 506 | 2.57 | 4.15 | 6.32 | 13.83 | 18.97 | 23.52 | 29.25 | 30.04 | 39.13 | 44.07 |
stats1_long = pd.melt(stats1.reset_index().drop(columns = "Total n°"), id_vars="Facility Type", var_name="scen")
scen = stats1_long.scen.unique()
# % of Facilities disrupted, by ADM1 (Districts)
stats2 = geodf_hf[geodf_hf != 0].groupby("ADM1").count().drop(columns = ["Facility Type", "geometry"]).rename(columns={'ID': 'Total n°'})
fd_columns = [col for col in stats2.columns if col.startswith("1in")]
for col in fd_columns:
stats2[col] = (stats2[col]/stats2["Total n°"])*100
stats2[fd_columns] = stats2[fd_columns].round(2)
# Merge with ADM1 geometries
stats2 = stats2.merge(adm1[["ADM1", "geometry"]], on='ADM1', how='left').set_index("ADM1")
stats2 =gpd.GeoDataFrame(stats2, geometry=stats2["geometry"], crs="EPSG:4326")
display(stats2)
| Total n° | 1in5 | 1in10 | 1in20 | 1in50 | 1in75 | 1in100 | 1in200 | 1in250 | 1in500 | 1in1000 | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADM1 | ||||||||||||
| Azad Kashmir | 12 | 8.33 | 8.33 | 25.00 | 25.00 | 25.00 | 25.00 | 25.00 | 25.00 | 25.00 | 25.00 | MULTIPOLYGON (((73.82016 33.01731, 73.78817 33... |
| Balochistan | 38 | 0.00 | 0.00 | 2.63 | 7.89 | 15.79 | 18.42 | 26.32 | 31.58 | 42.11 | 44.74 | MULTIPOLYGON (((63.85792 25.12653, 63.85792 25... |
| Federally Administered Tribal Areas | 7 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 14.29 | 14.29 | 14.29 | 14.29 | 28.57 | MULTIPOLYGON (((70.19426 31.09286, 70.18851 31... |
| Gilgit-Baltistan | 71 | 7.04 | 8.45 | 16.90 | 39.44 | 42.25 | 43.66 | 47.89 | 47.89 | 47.89 | 52.11 | MULTIPOLYGON (((75.20869 34.85907, 75.18998 34... |
| Islamabad | 145 | 1.38 | 1.38 | 2.76 | 6.21 | 6.90 | 6.90 | 10.34 | 10.34 | 13.10 | 15.17 | MULTIPOLYGON (((72.88009 33.75444, 72.90147 33... |
| Khyber-Pakhtunkhwa | 164 | 10.37 | 14.63 | 20.12 | 29.27 | 34.76 | 40.24 | 43.90 | 48.17 | 56.71 | 60.98 | MULTIPOLYGON (((70.33557 31.35058, 70.32341 31... |
| Punjab | 934 | 3.64 | 6.21 | 11.46 | 22.06 | 26.77 | 31.05 | 41.97 | 43.79 | 56.64 | 65.42 | MULTIPOLYGON (((70.96970 27.72655, 70.96156 27... |
| Sindh | 1267 | 2.29 | 3.71 | 5.45 | 10.34 | 14.68 | 17.52 | 22.57 | 23.28 | 29.83 | 35.52 | MULTIPOLYGON (((67.40986 24.00458, 67.40986 24... |
Map HF Impact Results#
fig = plt.figure(figsize=(12, 6))
ax0 = fig.add_subplot(111)
ax0.set_title("Floods impact by Facility Type")
ax0.set_xticklabels(scen)
ax0.set_xlabel("Flood Scenarios (Return Period)")
ax0.set_ylabel("Health Facilities impacted (%)")
ax0.set_ylim(0,62)
ax0.legend(loc='upper left', fontsize = 10, title = "Facility type")
ax0 = sns.barplot(
data=stats1_long, hue="Facility Type",# errorbar=("pi", 50),
x="scen", y="value",
palette='colorblind', alpha=.6,
)
plt.savefig(join(out_path, iso, title + ".png"), dpi=300, bbox_inches='tight', facecolor='white')
No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
figsize = (16, 12)
fig = plt.figure(figsize=figsize)
projection = ccrs.PlateCarree()
gs = gridspec.GridSpec(3, 4)
title = "Flood impact by Districts (ADM1)"
fig.suptitle(title, size=16, y=0.95)
# Define the colormap
cmap = plt.get_cmap('YlOrRd')
# Define the normalization from 0 to 45
norm = colors.Normalize(vmin=0, vmax=60)
for i, flood in enumerate(scen):
if i < 4:
ax = fig.add_subplot(gs[0, i], projection=projection)
if ((i > 3) and (i < 8)):
ax = fig.add_subplot(gs[1, i-4], projection=projection)
if i > 7:
ax = fig.add_subplot(gs[2, i-7], projection=projection)
ax.set_title(flood)
ax.get_xaxis().set_visible(True)
ax.get_yaxis().set_visible(True)
# Plot the data
stats2.plot(
ax=ax, column=flood, cmap=cmap, legend=False,
alpha=1, linewidth=0.2, edgecolor='black',
norm=norm
)
# ax.background_img(name='NaturalEarthRelief', resolution='high', extent = [flood_dict_rio[key].bounds[0], flood_dict_rio[key].bounds[2],
# flood_dict_rio[key].bounds[1], flood_dict_rio[key].bounds[3]])
# Add a colorbar to the figure, adjusting its position via `fig.add_axes`
cax = fig.add_axes([0.92, 0.25, 0.015, 0.5]) # Adjust the position and size of the colorbar here
sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
sm.set_array([])
fig.colorbar(sm, cax=cax, label="Facilities impacted (%)")
plt.show()
#-- set environment variable CARTOPY_USER_BACKGROUNDS
os.environ['CARTOPY_USER_BACKGROUNDS'] = 'C:/Users/wb618081/OneDrive - WBG/Python/Backgrounds/'
FD = "1in500"
figsize = (14,12)
fig = plt.figure(figsize = figsize)
projection = ccrs.PlateCarree()
ax1 = fig.add_subplot(1, 2, 1, projection=projection)
fonttitle = {'fontname':'Open Sans','weight':'bold','size':18}
# fig.suptitle("Sectoral severity of needs", size = 16, weight = "bold", y = 0.93)
ax1.set_title("Flood Impact on Hospitals", weight = "bold", size = 14)
ax1.get_xaxis().set_visible(True) # plt.axis('off')
ax1.get_yaxis().set_visible(True)
# ax1 = gdf_adm3_severity.plot(
# ax=ax, column='Severity', cmap='YlOrRd', legend=True,
# alpha=1, linewidth=0.2, edgecolor='black',
# # classification_kwds = {'bins': [0,1,2,3,4]}, scheme='user_defined'
# categorical = True,
# legend_kwds = {
# "loc": "upper right",
# "bbox_to_anchor": (1.42, 1),
# 'title': "Severity index",
# 'fontsize': 10,
# 'fmt': "{}",
# 'title_fontsize': 12
# }
# )
ax1 = adm0.plot(ax=ax1, facecolor="none", edgecolor='red')
ax1 = dry_geodf_hf_hosp[FD].plot(ax=ax1, legend = True,
facecolor='green', edgecolor='green', marker = "o", markersize=60, #alpha=0.6,
categorical = True,
legend_kwds = {
"loc": "upper right",
"bbox_to_anchor": (1.42, 1),
'title': "Flood depth",
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
})
ax1 = flood_geodf_hf_hosp[FD].plot(ax=ax1, legend = True,
facecolor='red', edgecolor='black', marker = "o", markersize=100, #alpha=0.6,
categorical = True,
legend_kwds = {
"loc": "upper right",
"bbox_to_anchor": (1.42, 1),
'title': "Flood depth",
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
})
minx = adm0.geometry.bounds.minx[0]
maxx = adm0.geometry.bounds.maxx[0]
miny = adm0.geometry.bounds.miny[0]
maxy = adm0.geometry.bounds.maxy[0]
ax1.set_extent([minx-0.5, maxx+0.5, miny-0.5, maxy+0.5])
# ax1.background_img(name='NaturalEarthRelief', resolution='high', extent = [32.5, 36, -18, -9])
# Plot legends for GeoDataFrames
# legend1 = ax1.get_legend()
# Manually create new artists legends
legend1 = ax1.legend(handles=[plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='red', markeredgecolor='black', markersize=8, alpha=1),
plt.Line2D([0], [0], marker='o', color='w', markerfacecolor='green', markeredgecolor='white',markersize=6, alpha=1)],
labels=['Flooded hospitals', 'Safe hospitals'], loc="upper left")
# Combine legends
ax1.add_artist(legend1)
# ax1.add_artist(legend1plus)
# txt = "Severity"
# txt2 = "Fatalities as reported from the ACLED dataset (2010-2024)"
# plt.figtext(0.15, 0.07, txt, wrap=True, horizontalalignment='left', fontsize=10)
# plt.figtext(0.58, 0.07, txt2, wrap=True, horizontalalignment='left', fontsize=10)
# plt.savefig("Flood Impact on Health facilities - Malawi.png", dpi=300, bbox_inches='tight', facecolor='white')
plt.show()
plt.close()
Flood impact on Roads#
Consider the raw Fmax flood rasters, thus exploiting the original FATHOM dataset resolution.
Assumptions:
Floods impact all roads except primary and secondary bridges.
Roads are disrupted if Flood Depth is > 20 cm.
All-season road defined as primary and secondary or tertiary using the OpenStreetMap classification.
Load OSM roads and define classification
{
'motorway': 'OSMLR level 1',
'motorway_link': 'OSMLR level 1',
'trunk': 'OSMLR level 1',
'trunk_link': 'OSMLR level 1',
'primary': 'OSMLR level 1',
'primary_link': 'OSMLR level 1',
'secondary': 'OSMLR level 2',
'secondary_link': 'OSMLR level 2',
'tertiary': 'OSMLR level 2',
'tertiary_link': 'OSMLR level 2',
'unclassified': 'OSMLR level 3',
'unclassified_link': 'OSMLR level 3',
'residential': 'OSMLR level 3',
'residential_link': 'OSMLR level 3',
'track': 'OSMLR level 4',
'service': 'OSMLR level 4'
}
# Only for the first time, need to download OSM .shp
# download_osm_shapefiles('asia', 'pakistan', Path(join(data_dir, iso)))
%%time
# Load the Road network
roads = dask_gpd.read_file(join(data_dir, iso, "pakistan-latest-free.shp", 'gis_osm_roads_free_1.shp'), npartitions = 8)
roads = roads.to_crs(epsg)
def get_num(x):
try:
return(int(x))
except:
return(5)
# roads.rename(columns = {"fclass":"OSMLR_num"}, inplace = True)
roads['OSMLR_num'] = roads['fclass'].apply(lambda x: get_num(str(x)[-1]))
CPU times: user 48.7 ms, sys: 47 ms, total: 95.7 ms
Wall time: 120 ms
The road disruption analysis is executed with a standalone .py code to take advantage of multiprocessing (which is not working for Jupyter Notebooks)
! ./parallel.sh
Number of CPU: 256
CPU Usage: 2.2
Memory Total: GB 1081.808326656
Memory Used: GB 184.76824576
Memory Free: GB 46.736207872
VECTORIZATION started...
VECTORIZATION Duration: 13.11687150001526 minutes
INTERSECTION started...
INTERSECTION Duration: 80.46674885352452 minutes
SAVING Roads disrupted 1in500
VECTORIZATION started...
VECTORIZATION Duration: 6.1779944936434426 minutes
INTERSECTION started...
INTERSECTION Duration: 33.178824202219644 minutes
SAVING Roads disrupted 1in20
VECTORIZATION started...
VECTORIZATION Duration: 9.126225244998931 minutes
INTERSECTION started...
INTERSECTION Duration: 52.4878054579099 minutes
SAVING Roads disrupted 1in75
VECTORIZATION started...
VECTORIZATION Duration: 8.172865001360575 minutes
INTERSECTION started...
INTERSECTION Duration: 48.015335353215534 minutes
SAVING Roads disrupted 1in50
VECTORIZATION started...
VECTORIZATION Duration: 3.7608969688415526 minutes
INTERSECTION started...
INTERSECTION Duration: 16.040956807136535 minutes
SAVING Roads disrupted 1in5
VECTORIZATION started...
VECTORIZATION Duration: 9.961028746763866 minutes
INTERSECTION started...
INTERSECTION Duration: 57.64960849285126 minutes
SAVING Roads disrupted 1in100
VECTORIZATION started...
VECTORIZATION Duration: 11.966248174508413 minutes
INTERSECTION started...
INTERSECTION Duration: 72.3317396680514 minutes
SAVING Roads disrupted 1in250
VECTORIZATION started...
VECTORIZATION Duration: 14.695027788480123 minutes
INTERSECTION started...
INTERSECTION Duration: 91.0698561668396 minutes
SAVING Roads disrupted 1in1000
VECTORIZATION started...
VECTORIZATION Duration: 11.499250102043153 minutes
INTERSECTION started...
INTERSECTION Duration: 69.03266327778498 minutes
SAVING Roads disrupted 1in200
VECTORIZATION started...
VECTORIZATION Duration: 4.926074488957723 minutes
INTERSECTION started...
INTERSECTION Duration: 24.67906924088796 minutes
SAVING Roads disrupted 1in10
real 645m50.395s
user 1999m27.455s
sys 354m37.796s
%%time
checkDir(join(out_path,iso,"vector"))
roads_impact = dict()
for key in flood_dict.keys():
file = join(out_path,iso,"vector","roads_impact_"+key+"_new.shp")
print("Reading " + file)
roads_impact[key] = dask_gpd.read_file(file, npartitions = 8)
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in500_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in20_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in75_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in50_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in5_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in100_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in250_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in1000_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in200_new.shp
Reading /home/jupyter-wb618081/Health-Access-Metrics/Output/PAK/vector/roads_impact_1in10_new.shp
CPU times: user 0 ns, sys: 73.5 ms, total: 73.5 ms
Wall time: 71.9 ms
Access to Roads#
Percentage of Health Facilities having direct access to an all-season road, by district (admin-2 level).
Assumptions:
All Health facilities considered are: Hospital, Health Post, Village Clinic, Health Centre, Dispensary and Outreach
All-season road defined as primary and secondary or tertiary using the OpenStreetMap classification.
Direct access defined as being within 100 m and 2 km of a road.
import geopandas as gpd
def roads_access_buffer(dest_gdf, roads_gdf, buffer_dist=100, utm=epsg_utm, road_importance=None):
'''
Compute the accessibility of destinations according to their distance from roads
INPUT
dest_gdf [geopandas.GeoDataFrame] - destinations GeoDataFrame from which to compute roads access
roads_gdf [geopandas.GeoDataFrame] - roads GeoDataFrame from which to apply the buffer distance
buffer_dist [int] - buffer distance in meters
utm [str] - UTM projection to use
road_importance [int, optional] - threshold for road importance
RETURNS
geopandas.GeoDataFrame - destinations GeoDataFrame with boolean access column
'''
dest_gdf_buff = dest_gdf.copy().to_crs(utm)
# Calculate buffers
roads_buff = roads_gdf.copy().to_crs(utm)
roads_buff['geometry'] = roads_buff['geometry'].buffer(buffer_dist)
# Filter roads based on importance if specified
if road_importance is not None:
roads_buff = roads_buff.loc[roads_buff['OSMLR_num'] <= road_importance]
# Intersect roads and buffer
matched_index = gpd.sjoin(dest_gdf_buff, roads_buff, how="inner", op='intersects').index
# Create dynamic column name
col_name = f'bool_{road_importance}_{buffer_dist}m' if road_importance is not None else f'bool_all_{buffer_dist}m'
dest_gdf_buff[col_name] = dest_gdf_buff.index.isin(matched_index)
dest_gdf_buff = dest_gdf_buff.to_crs(dest_gdf.crs)
return dest_gdf_buff
Baseline#
%%time
data_health = geodf_hf.copy()
buffer_zones = [100, 2000]
for b in buffer_zones:
content = roads_access_buffer(geodf_hf, roads.compute(), buffer_dist=b, utm=epsg_utm, road_importance=3).filter(regex='^bool_')
col = content.columns[0]
content = content.rename(columns={col:col + "_baseline"})
data_health = pd.concat([data_health, content], axis = 1)
CPU times: user 8min 50s, sys: 1.37 s, total: 8min 52s
Wall time: 8min 50s
adm2 = adm2.to_crs(epsg)
geodf_hf_road_base = gpd.sjoin(data_health, adm2[['geometry']], how='left').drop(columns = "index_right")
## Get percentages
res_osmlr = geodf_hf_road_base[['bool_3_100m_baseline','bool_3_2000m_baseline','ADM2']].groupby('ADM2').sum()
res_count = geodf_hf_road_base[['ADM2','bool_3_100m_baseline']].groupby('ADM2').count().rename(columns={'bool_3_100m_baseline':'count'})
res_osmlr_pct_base = res_osmlr.apply(lambda x: (x/res_count['count'])*100)
res_osmlr_pct_base.reset_index(inplace = True)
res_osmlr_pct_base
| ADM2 | bool_3_100m_baseline | bool_3_2000m_baseline | |
|---|---|---|---|
| 0 | Azad Kashmir | 0.0 | 0.000000 |
| 1 | Bahawalpur | 0.0 | 0.000000 |
| 2 | Bannu | 0.0 | 0.000000 |
| 3 | Dera Ghazi Khan | 0.0 | 0.000000 |
| 4 | Dera Ismail Khan | 0.0 | 0.000000 |
| 5 | F.A.T.A. | 0.0 | 0.000000 |
| 6 | Faisalabad | 0.0 | 0.000000 |
| 7 | Gujranwala | 0.0 | 0.000000 |
| 8 | Hazara | 0.0 | 12.500000 |
| 9 | Hyderabad | 0.0 | 0.000000 |
| 10 | Islamabad | 0.0 | 1.379310 |
| 11 | Kalat | 0.0 | 0.000000 |
| 12 | Karachi | 0.0 | 1.870079 |
| 13 | Kohat | 0.0 | 0.000000 |
| 14 | Lahore | 0.0 | 0.000000 |
| 15 | Larkana | 0.0 | 0.000000 |
| 16 | Makran | 0.0 | 0.000000 |
| 17 | Malakand | 0.0 | 0.000000 |
| 18 | Mardan | 0.0 | 0.000000 |
| 19 | Mirpur Khas | 0.0 | 0.000000 |
| 20 | Multan | 0.0 | 0.000000 |
| 21 | Nasirabad | 0.0 | 0.000000 |
| 22 | Northern Areas | 0.0 | 7.042254 |
| 23 | Peshawar | 0.0 | 0.000000 |
| 24 | Quetta | 0.0 | 0.000000 |
| 25 | Rawalpindi | 0.0 | 6.666667 |
| 26 | Sargodha | 0.0 | 0.000000 |
| 27 | Sibi | 0.0 | 0.000000 |
| 28 | Sukkur | 0.0 | 6.666667 |
| 29 | Zhob | 0.0 | 0.000000 |
Floods scenarios#
%%time
data_health = geodf_hf.copy()
for key in roads_impact.keys():
buffer_zones = [100, 2000]
for b in buffer_zones:
content = roads_access_buffer(geodf_hf, roads_impact[key].compute(), buffer_dist=b, utm=epsg_utm, road_importance=2).filter(regex='^bool_')
col = content.columns[0]
content = content.rename(columns={col:col + "_" + key})
data_health = pd.concat([data_health, content], axis = 1)
adm1 = adm1.to_crs(epsg)
geodf_hf_road = gpd.sjoin(data_health, adm1[['geometry']], how='left').drop(columns = "index_right")
## Get percentages
# res_osmlr = facilities[['bool_1_100m','bool_2_100m','bool_1_2km','bool_2_2km','WB_ADM2_CO']].groupby('WB_ADM2_CO').sum()
columns = [col for col in geodf_hf_road.columns if col.startswith("bool")]
res_osmlr = geodf_hf_road[columns+['ADM1']].groupby('ADM1').sum()
res_count = geodf_hf_road[["bool_2_100m_"+key,'ADM1']].groupby('ADM1').count().rename(columns={'bool_2_100m_'+key:'count'})
res_osmlr_pct = res_osmlr.apply(lambda x: (x/res_count['count'])*100)
res_osmlr_pct.reset_index(inplace = True)
res_osmlr_pct.head(2)
geo_res_osmlr_pct_base = gpd.GeoDataFrame(res_osmlr_pct_base, geometry=adm1.geometry, crs=epsg)
geo_res_osmlr_pct = gpd.GeoDataFrame(res_osmlr_pct, geometry=adm1.geometry, crs=epsg)
import matplotlib.gridspec as gridspec
import cartopy.feature as cfeature
os.environ['CARTOPY_USER_BACKGROUNDS'] = 'C:/Users/wb618081/OneDrive - WBG/Python/Backgrounds/'
figsize = (10,10)
fig = plt.figure(figsize=figsize) #, constrained_layout=True)
projection = ccrs.PlateCarree()
gs = gridspec.GridSpec(2, 3)
fig.suptitle("Flood impact on Roads Accessibility - Direct Access", size = 16, y = 0.95)
# fonttitle = {'fontname':'Open Sans','weight':'bold','size':14}
scen_toplot = ["baseline", '1in50', '1in100', '1in200', '1in500', '1in1000']
for i, flood in enumerate(scen_toplot):
if i < 3:
ax = fig.add_subplot(gs[0,i], projection=projection)
else:
ax = fig.add_subplot(gs[1,i-3], projection=projection)
ax.set_title(flood)
ax.get_xaxis().set_visible(True) # plt.axis('off')
ax.get_yaxis().set_visible(True)
cmap = "hot"
if i == 0:
geo_res_osmlr_pct_base.plot(
ax=ax, column="bool_2_100m_"+flood, cmap=cmap, legend=False,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.1,0.15,0.2,0.25,0.3,0.4,0.6,0.7]},
legend_kwds = {
'title': "Health facilities within \n 100m of an all-season road (%)",
"loc": "upper right",
"bbox_to_anchor": (2.7, 1),
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
}
)
else:
if i == 2:
geo_res_osmlr_pct.plot(
ax=ax, column="bool_2_100m_"+ flood, cmap=cmap, legend=True,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.1,0.15,0.2,0.25,0.3,0.4,0.6,0.7]},
legend_kwds = {
'title': "Health facilities within 100m \n of an all-season road (%)",
"loc": "upper right",
"bbox_to_anchor": (2.8, 1),
'fontsize': 10,
'fmt': "{:.0%}",
'title_fontsize': 12
}
)
else:
geo_res_osmlr_pct.plot(
ax=ax, column='bool_2_100m_'+flood, cmap=cmap, legend=False,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.1,0.15,0.2,0.25,0.3,0.4,0.6,0.7]},
legend_kwds = {
'title': "Health facilities within 100m \n of an all-season road (%)",
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
}
)
# ax.background_img(name='NaturalEarthRelief', resolution='high', extent = [32.5, 36, -18, -9])
# plt.savefig(os.path.join(scratch_dir, "Health_Access.png"), dpi=150, bbox_inches='tight', facecolor='white')
import matplotlib.gridspec as gridspec
import cartopy.feature as cfeature
os.environ['CARTOPY_USER_BACKGROUNDS'] = 'C:/Users/wb618081/OneDrive - WBG/Python/Backgrounds/'
figsize = (10,10)
fig = plt.figure(figsize=figsize) #, constrained_layout=True)
projection = ccrs.PlateCarree()
gs = gridspec.GridSpec(2, 3)
fig.suptitle("Flood impact on Roads Accessibility - Direct Access", size = 16, y = 0.95)
# fonttitle = {'fontname':'Open Sans','weight':'bold','size':14}
scen_toplot = ["baseline", '1in50', '1in100', '1in200', '1in500', '1in1000']
for i, flood in enumerate(scen_toplot):
if i < 3:
ax = fig.add_subplot(gs[0,i], projection=projection)
else:
ax = fig.add_subplot(gs[1,i-3], projection=projection)
ax.set_title(flood)
ax.get_xaxis().set_visible(True) # plt.axis('off')
ax.get_yaxis().set_visible(True)
cmap = "hot"
if i == 0:
geo_res_osmlr_pct_base.plot(
ax=ax, column="bool_2_2km_"+flood, cmap=cmap, legend=False,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.3,0.35,0.4,0.45,0.5,0.55,0.6,0.7,0.8]},
legend_kwds = {
'title': "Health facilities within \n 2km of an all-season road (%)",
"loc": "upper right",
"bbox_to_anchor": (2.7, 1),
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
}
)
else:
if i == 2:
geo_res_osmlr_pct.plot(
ax=ax, column="bool_2_2km_"+ flood, cmap=cmap, legend=True,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.3,0.35,0.4,0.45,0.5,0.55,0.6,0.7,0.8]},
legend_kwds = {
'title': "Health facilities within 2km \n of an all-season road (%)",
"loc": "upper right",
"bbox_to_anchor": (2.8, 1),
'fontsize': 10,
'fmt': "{:.0%}",
'title_fontsize': 12
}
)
else:
geo_res_osmlr_pct.plot(
ax=ax, column='bool_2_2km_'+flood, cmap=cmap, legend=False,
scheme='user_defined', alpha=1, linewidth=0.2, edgecolor='black',
classification_kwds = {'bins': [0.3,0.35,0.4,0.45,0.5,0.55,0.6,0.7,0.8]},
legend_kwds = {
'title': "Health facilities within 2km \n of an all-season road (%)",
'fontsize': 10,
'fmt': "{}",
'title_fontsize': 12
}
)
# ax.background_img(name='NaturalEarthRelief', resolution='high', extent = [32.5, 36, -18, -9])
# plt.savefig(os.path.join(scratch_dir, "Health_Access.png"), dpi=150, bbox_inches='tight', facecolor='white')
