Health Emergencies Preparedness and Response Program (HEPR)#

This notebook is a template workflow to collect data and prepare the main data to perform a baseline physical accessibility analysis to health facilities.
It uses various tools developed by the World Bank’s Geospatial Operations Support Team (GOST).

This notebook focuses on a raster-based implementation of market access, using the motorized Global Friction Surface from the Malaria Atlas Project.
Additionaly, it uses population data from World Pop (Unconstrained UN-Adjusted 2020, 1km resolution).

Data Download Links#

Setup#

Import packages required for the analysis

# System
import sys
import os
from os.path import join, expanduser
from pathlib import Path
# Avoid warnings to pop up
import warnings
warnings.filterwarnings('ignore')

# Visualization tools
# import folium as flm
import matplotlib.pyplot as plt
import matplotlib.colors as colors
import matplotlib.gridspec as gridspec
from rasterio.plot import plotting_extent
from rasterio.plot import show
from mpl_toolkits.axes_grid1 import make_axes_locatable
import contextily as ctx
import cartopy
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import seaborn as sns

os.environ['CARTOPY_USER_BACKGROUNDS'] = '/home/jupyter-wb618081/Python/Backgrounds/'

# Processing
import numpy as np
import geopandas as gpd
import pandas as pd
from gadm import GADMDownloader

# Raster
import rasterio as rio
from rasterio.features import shapes
from shapely.geometry import box
from rasterio.features import geometry_mask
from rasterstats import zonal_stats
from shapely.geometry import Polygon, box, Point
from shapely.geometry import mapping
import skimage.graph as graph
from scipy.signal import convolve2d

# Graph
import pickle
import networkx as nx
import osmnx as ox

# for facebook data
from pyquadkey2 import quadkey

# Climate/Flood
# import xarray as xr

# Define your path to the Repositories

sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'gostrocks', 'src'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOSTNets_Raster', 'src'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOSTnets'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'GOST_Urban', 'src', 'GOST_Urban'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'health-equity-diagnostics', 'src', 'modules'))
sys.path.append(join(expanduser("/home/jupyter-wb618081"), 'Repos', 'INFRA_SAP'))

import GOSTnets as gn
from GOSTnets.load_osm import *
import GOSTRocks.rasterMisc as rMisc
from GOSTRocks.misc import get_utm
import GOSTNetsRaster.market_access as ma
import UrbanRaster as urban

from infrasap import aggregator
from infrasap import osm_extractor as osm

from utils import download_osm_shapefiles

# auto reload
%load_ext autoreload
%autoreload 2

Define below the local folder where you are located

data_dir = join(expanduser("/home/jupyter-wb618081"), 'data')
scratch_dir = join(expanduser("/home/jupyter-wb618081"), 'Health-Access-Metrics')
out_path = join(expanduser("/home/jupyter-wb618081"), 'Health-Access-Metrics', 'Output')

## Function for creating a path, if needed ##
def checkDir(out_path):
    if not os.path.exists(out_path):
        os.makedirs(out_path)

Data Preparation#

Administrative boundaries#

epsg = "EPSG:4326"
epsg_utm = "EPSG:32736"

country = 'Pakistan'
iso = 'PAK'
downloader = GADMDownloader(version="4.0")
adm0 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=0)
adm1 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=1)
adm2 = downloader.get_shape_data_by_country_name(country_name=country, ad_level=2)

adm1.rename(columns={"NAME_1":"ADM1"}, inplace=True)
adm2.rename(columns={"NAME_1":"ADM1","NAME_2":"ADM2"}, inplace=True)

# iso = 'MWI'
# adm0_path = join(expanduser("R:/"), 'Data', 'GLOBAL/ADMIN', f'Admin0_Polys.shp')
# adm0 = gpd.read_file(adm0_path)
# adm0 = adm0[adm0["ISO3"] == "MWI"].to_crs(4326)

# iso = 'MWI'
# adm2_path = join(expanduser("R:/"), 'Data', 'GLOBAL/ADMIN', f'Admin2_Polys.shp')
# adm2 = gpd.read_file(adm2_path)
# adm2 = adm2[adm2["ISO3"] == "MWI"].to_crs(4326)

Population (origin)#

# wp_path = join(expanduser("R:/"), 'Data', 'GLOBAL/Population/WorldPop_PPP_2020/MOSAIC_ppp_prj_2020', f'ppp_prj_2020_{iso}.tif') # Download from link above
wp_path = join(data_dir, iso, f'pak_ppp_2020_1km_Aggregated.tif') # Download from link above

pop_surf = rio.open(wp_path)

Health Facilities (destinations)#

# BHU (Basic Health Unit)
# CD/GD (Civil Dispensary)
# RHC (Rural Health Center)
# SHC (Secondary Health Care)

hf_path = join(data_dir, iso, "health_facilities/", 'pakistan.csv')
df_hf = pd.read_csv(hf_path, header = 0)
df_hf = df_hf[["X", "Y", "osm_id", "amenity"]]; df_hf.rename(columns = {"osm_id": "ID", "amenity": "Facility Type"}, inplace = True)

display('The following categories and numbers of Health Facilities are considered to perform the analysis: ')
display(df_hf["Facility Type"].value_counts())

# Consider all health facilities and hospitals

df_hf_hosp = df_hf.loc[df_hf['Facility Type'] == "hospital"]

'The following categories and numbers of Health Facilities are considered to perform the analysis: '

Facility Type
hospital    1673
clinic       633
pharmacy     528
doctors      187
dentist       41
Name: count, dtype: int64

# Convert from pandas.Dataframe to Geopandas.dataframe

geodf_hf = gpd.GeoDataFrame(
    df_hf, geometry=gpd.points_from_xy(df_hf.X, df_hf.Y), crs=epsg
)

geodf_hf_hosp = gpd.GeoDataFrame(
    df_hf_hosp, geometry=gpd.points_from_xy(df_hf_hosp.X, df_hf_hosp.Y), crs=epsg
)

# Clean the geodf
geodf_hf = geodf_hf[['ID', 'Facility Type', 'geometry']]; #geodf_hf.loc[:, 'ID'] = df_hf.index
geodf_hf_hosp = geodf_hf_hosp[['ID', 'Facility Type', 'geometry']]; # geodf_hf_hosp.loc[:, 'ID'] = df_hf_hosp.index

geodf_hf = geodf_hf[~geodf_hf.geometry.is_empty]
geodf_hf_hosp = geodf_hf_hosp[~geodf_hf_hosp.geometry.is_empty]

Assure correspondence of ADM1 names in Health facilities and official Administrative Units

geodf_hf = gpd.sjoin(geodf_hf, adm1[["ADM1", "geometry"]], op='within', how='left')
geodf_hf.drop(columns = ["index_right"], inplace = True)

geodf_hf_hosp = gpd.sjoin(geodf_hf_hosp, adm1[["ADM1", "geometry"]], op='within', how='left')
geodf_hf_hosp.drop(columns = ["index_right"], inplace = True)

Flood#

Here, we import Fathom flood data (.tif) of fluvial floods with different return periods.
This data represent and mimic the climate impact on infrastructure and the disruption of the accessibility to health facilities.

# Import multiple rasterio .tif file as a dictionary
# Keys are return periods
# Values are rasterio arrays

# inland waters and oceans: 999
# not-flooded areas: -999 (Fluvial)
# not-flooded areas: 0 (Pluvial)
# Other values represent the flood depth (in m)

flood_fluvial_path = join(data_dir, iso,'FLOOD_SSBN','fluvial_undefended')
flood_pluvial_path = join(data_dir, iso,'FLOOD_SSBN','pluvial')

files=os.listdir(flood_fluvial_path)
flood_dict_fluvial = {}
for file in files:
    key = file.split('_')[1].split('.')[0]
    value = rio.open(join(flood_fluvial_path,file)) #.read(1)
    flood_dict_fluvial[key] = value

files=os.listdir(flood_pluvial_path)
flood_dict_pluvial = {}
for file in files:
    key = file.split('_')[1].split('.')[0]
    value = rio.open(join(flood_pluvial_path,file)) #.read(1)
    flood_dict_pluvial[key] = value

# Preserve the maximum flood depth
flood_dict = {}
for f,key in enumerate(flood_dict_pluvial.keys()):
    out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key +'.tif')
    if os.path.isfile(out_flood_path):
        value = rio.open(out_flood_path)
        flood_dict[key] = value
    else:
        out_meta = flood_dict_pluvial[key].meta
        flood_max = np.fmax(flood_dict_fluvial[key].read(1),flood_dict_pluvial[key].read(1))
        flood_dict[key] = flood_max
        # flood_dict[key][flood_dict[key] == 0] = -999
        # Write the output raster
        out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key +'.tif')
        with rio.open(out_flood_path, 'w', **out_meta) as dst:
            dst.write(flood_max, 1)
        # Read the output raster
        value = rio.open(out_flood_path)
        flood_dict[key] = value

# Free up memory
for f,key in enumerate(flood_dict.keys()):
        del flood_dict_fluvial[key]
        del flood_dict_pluvial[key]

Friction Surface#

Process the travel cost surface from the Malaria Atlas Project, clip the raster to our region of interest.

# Only the first time, clip the travel friction surface to the country of interest
out_travel_surface = join(data_dir, iso, f"travel_surface_motorized_{iso}.tif")

if not os.path.isfile(out_travel_surface):
    gfs_path = join(data_dir, '2020_motorized_friction_surface.geotiff')
    gfs_rio = rio.open(gfs_path)
    rMisc.clipRaster(gfs_rio, adm0, out_travel_surface, crop=False)

# Import the clipped friction surface
travel_surf = rio.open(out_travel_surface) #.read(1)

print(travel_surf.res)
print(pop_surf.res)

(0.008333333333333333, 0.008333333333333333)
(0.0083333333, 0.0083333333)

Preprocessing#

Align the POPULATION & FLOOD raster to the friction surface, ensuring that they have the same extent and resolution.

# If the Standardized data are already present, skip, else generate them

def checkDir(out_path):
    if not os.path.exists(out_path):
        os.makedirs(out_path)

checkDir(join(out_path, iso))

out_pop_surface_std = join(out_path, iso, "WP_2020_1km_STD.tif")
if not os.path.isfile(out_pop_surface_std):
    rMisc.standardizeInputRasters(pop_surf, travel_surf, out_pop_surface_std, resampling_type="nearest")

checkDir(join(out_path, iso, "flood"))

for f,key in enumerate(flood_dict.keys()):
    # out_flood_path = join(data_dir, iso,'FLOOD_SSBN', 'Fmax_' + key)
    out_flood_std = join(out_path, iso, 'flood', "STD_" + 'Fmax_'+ key +'.tif')
    if os.path.isfile(out_flood_std):
        None
    else:
        rMisc.standardizeInputRasters(flood_dict[key], travel_surf, out_flood_std, resampling_type="nearest")

Correct the reprojected FLOOD raster extension, ensuring that lands are not covered by inland and open waters

# Import multiple rasterio .tif file as a dictionary
# Keys are return periods
# Values are rasterio arrays

flood_path = join(out_path, iso, 'flood')
files=os.listdir(flood_path)

flood_dict_std = {}
for file in files:
    if file.startswith('STD') == True:
        key = file.split('_')[2].split('.')[0]
        value = rio.open(join(flood_path,file)) #.read(1)
        flood_dict_std[key] = value

display(flood_dict_std["1in10"].read_crs())

CRS.from_epsg(4326)

Origins#

Prepare a standard grid (pandas.Dataframe) using each cell from the 1km World Pop raster.

pop_surf = rio.open(out_pop_surface_std)
pop = pop_surf.read(1, masked=False)

# Create a population df from population surface
indices = list(np.ndindex(pop.shape))
xys = [Point(pop_surf.xy(ind[0], ind[1])) for ind in indices]
res_df = pd.DataFrame({
    'spatial_index': indices,
    'xy': xys,
    'pop': pop.flatten()
})
res_df['pointid'] = res_df.index
res_df

	spatial_index	xy	pop	pointid
0	(0, 0)	POINT (60.89583333333332 37.09583333333333)	8.048295	0
1	(0, 1)	POINT (60.904166666666654 37.09583333333333)	7.362457	1
2	(0, 2)	POINT (60.91249999999999 37.09583333333333)	9.171885	2
3	(0, 3)	POINT (60.92083333333332 37.09583333333333)	9.375657	3
4	(0, 4)	POINT (60.92916666666665 37.09583333333333)	8.939575	4
...	...	...	...	...
3272275	(1607, 2030)	POINT (77.81249999999999 23.704166666666666)	212.114243	3272275
3272276	(1607, 2031)	POINT (77.82083333333333 23.704166666666666)	141.163818	3272276
3272277	(1607, 2032)	POINT (77.82916666666665 23.704166666666666)	128.055283	3272277
3272278	(1607, 2033)	POINT (77.83749999999998 23.704166666666666)	100.614090	3272278
3272279	(1607, 2034)	POINT (77.84583333333332 23.704166666666666)	86.039619	3272279

3272280 rows × 4 columns

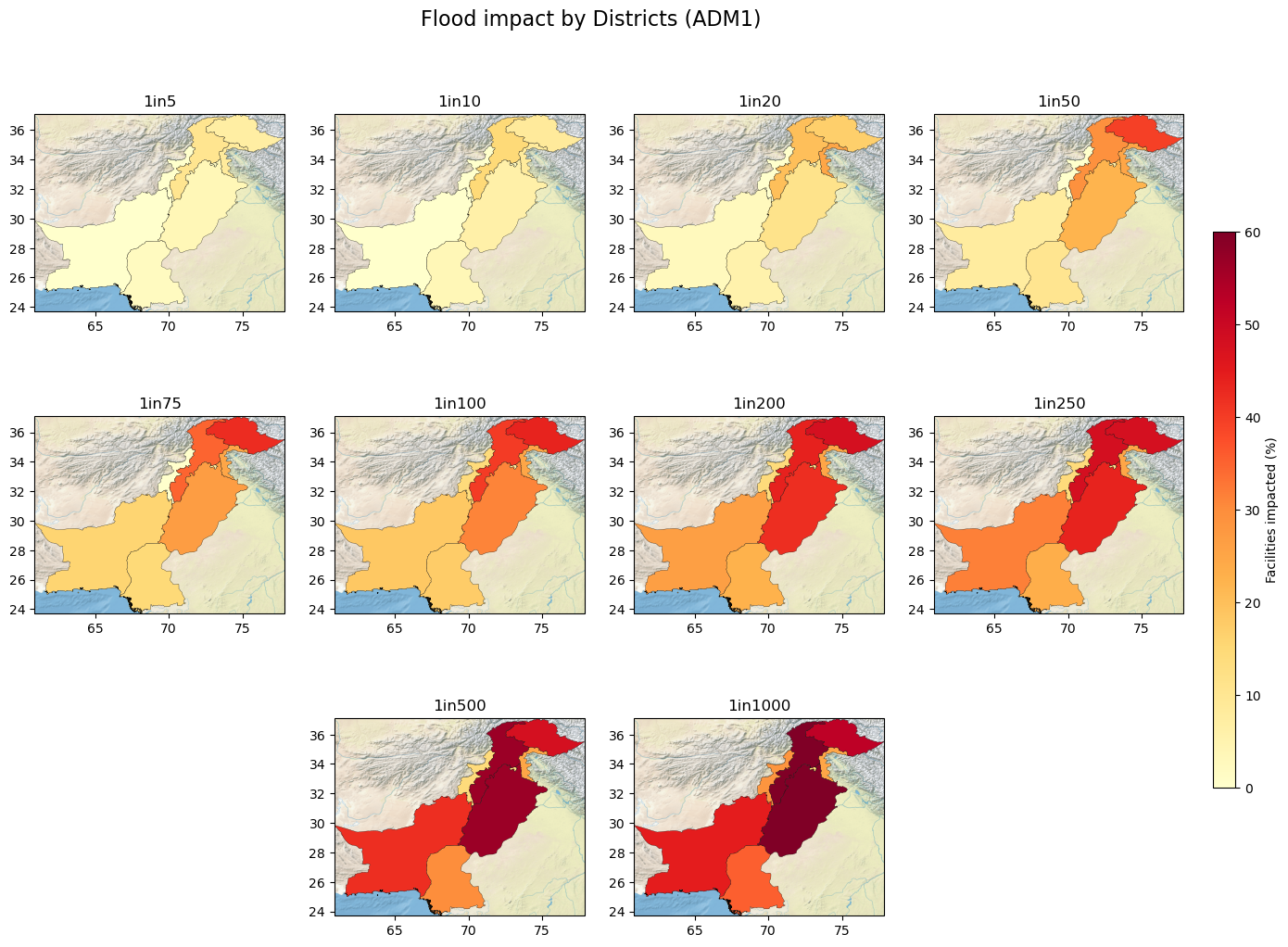

Flood impact on Health facilities#

Consider the raw Fmax flood rasters, thus exploiting the original FATHOM dataset resolution
For every Standardized Flood layer (Return Period), extract Flood Depth on Health Facilities location

# Extract flood depth at every facility location

for key in flood_dict.keys():
    coords = [(x,y) for x, y in zip(geodf_hf_hosp.geometry.x, geodf_hf_hosp.geometry.y)]
    geodf_hf_hosp[key] = [x[0] for x in flood_dict[key].sample(coords)]

    coords = [(x,y) for x, y in zip(geodf_hf.geometry.x, geodf_hf.geometry.y)]
    geodf_hf[key] = [x[0] for x in flood_dict[key].sample(coords)]

# Identify Flooded and not Flooded Facilities

flood_geodf_hf_hosp = {}
dry_geodf_hf_hosp = {}
flood_geodf_hf = {}
dry_geodf_hf = {}
for key in flood_dict.keys():
    flood_geodf_hf_hosp[key] = geodf_hf_hosp[geodf_hf_hosp[key] > 0.2]
    dry_geodf_hf_hosp[key] = geodf_hf_hosp[geodf_hf_hosp[key] == 0]

    flood_geodf_hf[key] = geodf_hf[geodf_hf[key] > 0.2]
    dry_geodf_hf[key] = geodf_hf[geodf_hf[key] == 0]

Summary statistics#

For every Flood Scenario (RP):

Number and % of Health facilities disrupted by Facility Type
Number and % of Health facilities disrupted by ADM1 Districts

# Reorder Flood Return Periods in geodf columns

def sort_flood_col(gdf, str_start, str_sep):
    # Define str_start and str_sep as the strings that identify the start of column names and the separator with the numerical value
    fd_columns = [col for col in gdf.columns if col.startswith(str_start)]
    non_fd_columns = [col for col in gdf.columns if not col.startswith(str_start)]
    fd_num = [(int(col.split(str_sep)[1]), col) for col in fd_columns]
    fd_col_sort = [col for _, col in sorted(fd_num)]
    new_column_order = non_fd_columns + fd_col_sort
    # Reorder the DataFrame columns
    gdf = gdf[new_column_order]
    return(gdf)

geodf_hf = sort_flood_col(geodf_hf, "1in", "in")
geodf_hf_hosp = sort_flood_col(geodf_hf_hosp, "1in", "in")

# % of Facilities disrupted, by Facility Type

stats1 = geodf_hf[geodf_hf != 0].groupby("Facility Type").count().drop(columns = ["ADM1", "geometry"]).rename(columns={'ID': 'Total n°'})
fd_columns = [col for col in stats1.columns if col.startswith("1in")]
for col in fd_columns:
    stats1[col] = (stats1[col]/stats1["Total n°"])*100

stats1[fd_columns] = stats1[fd_columns].round(2)
display(stats1)

	Total n°	1in5	1in10	1in20	1in50	1in75	1in100	1in200	1in250	1in500	1in1000
Facility Type
clinic	596	2.68	4.70	7.55	14.09	19.13	21.31	26.68	27.68	34.56	43.12
dentist	39	7.69	7.69	15.38	17.95	20.51	23.08	25.64	25.64	33.33	38.46
doctors	123	9.76	13.01	21.14	37.40	41.46	42.28	47.97	50.41	53.66	59.35
hospital	1352	3.25	5.18	8.88	16.27	20.04	23.74	32.17	33.80	43.42	49.63
pharmacy	506	2.57	4.15	6.32	13.83	18.97	23.52	29.25	30.04	39.13	44.07

stats1_long = pd.melt(stats1.reset_index().drop(columns = "Total n°"), id_vars="Facility Type", var_name="scen")
scen = stats1_long.scen.unique()

# % of Facilities disrupted, by ADM1 (Districts)

stats2 = geodf_hf[geodf_hf != 0].groupby("ADM1").count().drop(columns = ["Facility Type", "geometry"]).rename(columns={'ID': 'Total n°'})
fd_columns = [col for col in stats2.columns if col.startswith("1in")]
for col in fd_columns:
    stats2[col] = (stats2[col]/stats2["Total n°"])*100

stats2[fd_columns] = stats2[fd_columns].round(2)

# Merge with ADM1 geometries
stats2 = stats2.merge(adm1[["ADM1", "geometry"]], on='ADM1', how='left').set_index("ADM1")
stats2 =gpd.GeoDataFrame(stats2, geometry=stats2["geometry"], crs="EPSG:4326")
display(stats2)

	Total n°	1in5	1in10	1in20	1in50	1in75	1in100	1in200	1in250	1in500	1in1000	geometry
ADM1
Azad Kashmir	12	8.33	8.33	25.00	25.00	25.00	25.00	25.00	25.00	25.00	25.00	MULTIPOLYGON (((73.82016 33.01731, 73.78817 33...
Balochistan	38	0.00	0.00	2.63	7.89	15.79	18.42	26.32	31.58	42.11	44.74	MULTIPOLYGON (((63.85792 25.12653, 63.85792 25...
Federally Administered Tribal Areas	7	0.00	0.00	0.00	0.00	0.00	14.29	14.29	14.29	14.29	28.57	MULTIPOLYGON (((70.19426 31.09286, 70.18851 31...
Gilgit-Baltistan	71	7.04	8.45	16.90	39.44	42.25	43.66	47.89	47.89	47.89	52.11	MULTIPOLYGON (((75.20869 34.85907, 75.18998 34...
Islamabad	145	1.38	1.38	2.76	6.21	6.90	6.90	10.34	10.34	13.10	15.17	MULTIPOLYGON (((72.88009 33.75444, 72.90147 33...
Khyber-Pakhtunkhwa	164	10.37	14.63	20.12	29.27	34.76	40.24	43.90	48.17	56.71	60.98	MULTIPOLYGON (((70.33557 31.35058, 70.32341 31...
Punjab	934	3.64	6.21	11.46	22.06	26.77	31.05	41.97	43.79	56.64	65.42	MULTIPOLYGON (((70.96970 27.72655, 70.96156 27...
Sindh	1267	2.29	3.71	5.45	10.34	14.68	17.52	22.57	23.28	29.83	35.52	MULTIPOLYGON (((67.40986 24.00458, 67.40986 24...

Map HF Impact Results#

fig = plt.figure(figsize=(12, 6))

ax0 = fig.add_subplot(111)
title = "Floods impact by Facility Type"
ax0.set_title(title)
ax0.set_xticklabels(scen)
ax0.set_xlabel("Flood Scenarios (Return Period)")
ax0.set_ylabel("Health Facilities impacted (%)")
ax0.set_ylim(0,62)
ax0.legend(loc='upper left', fontsize = 10, title = "Facility type")
ax0 = sns.barplot(
    data=stats1_long, hue="Facility Type",# errorbar=("pi", 50),
    x="scen", y="value",
    palette='colorblind', alpha=.6,
)

plt.savefig(join(out_path, iso, title + ".png"), dpi=300, bbox_inches='tight', facecolor='white')

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.

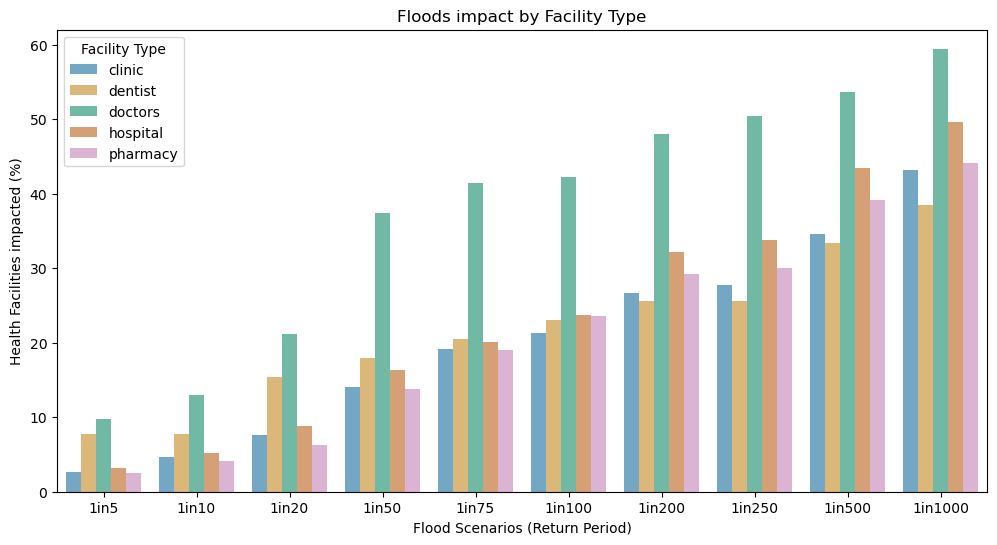

../_images/df11bb609d2eccd7f681e13c6b62932eac894c02a0d44914e077b96431f93f59.png

figsize = (16, 12)
fig = plt.figure(figsize=figsize)
projection = ccrs.PlateCarree()
gs = gridspec.GridSpec(3, 4)

title = "Flood impact by Districts (ADM1)"
fig.suptitle(title, size=16, y=0.95)

# Define the colormap
cmap = plt.get_cmap('YlOrRd')
# Define the normalization from 0 to 45
norm = colors.Normalize(vmin=0, vmax=60)

for i, flood in enumerate(scen):
    if i < 4:
        ax = fig.add_subplot(gs[0, i], projection=projection)
    if ((i > 3) and (i < 8)):
        ax = fig.add_subplot(gs[1, i-4], projection=projection)
    if i > 7:
        ax = fig.add_subplot(gs[2, i-7], projection=projection)

    ax.set_title(flood)
    ax.get_xaxis().set_visible(True)
    ax.get_yaxis().set_visible(True)

    # Plot the data
    stats2.plot(
        ax=ax, column=flood, cmap=cmap, legend=False,
        alpha=1, linewidth=0.2, edgecolor='black',
        norm=norm
    )
    ax.background_img(name='NaturalEarthRelief', resolution='high', extent = [adm0.bounds.minx[0], adm0.bounds.maxx[0], adm0.bounds.miny[0], adm0.bounds.maxy[0]])

# Add a colorbar to the figure, adjusting its position via `fig.add_axes`
cax = fig.add_axes([0.92, 0.25, 0.015, 0.5])  # Adjust the position and size of the colorbar here
sm = plt.cm.ScalarMappable(cmap=cmap, norm=norm)
sm.set_array([])
fig.colorbar(sm, cax=cax, label="Facilities impacted (%)")

plt.show()

plt.savefig(join(out_path, iso, title + ".png"), dpi=300, bbox_inches='tight', facecolor='white')

../_images/506de7bfaccf711ccd1b510d6abb6c1cb6ef6abedbc62277aece1c77adc99d80.png

<Figure size 640x480 with 0 Axes>

Flood impact on Friction Surface#

Consider the Standardized Fmax flood rasters, thus exploiting the original FATHOM dataset resolution
We consider different degrees of accessibility/mobility disruption according to different flood depth (FD) levels

If the FD is less than 0.3 meters, than accessibility is preserved but signifcantly impacted (slowered)
If the FD is higher than 0.3 meters, than mobility is interrupted on that specific pathway

Pregnolato et al.PNG

# Import multiple rasterio .tif file as a dictionary
# Keys are return periods
# Values are rasterio arrays

flood_path = join(out_path, iso, 'flood')
files=os.listdir(flood_path)

flood_dict_std = {}
for file in files:
    if file.startswith('STD') == True:
        key = file.split('_')[2].split('.')[0]
        value = rio.open(join(flood_path,file)) #.read(1)
        flood_dict_std[key] = value

display(flood_dict_std["1in10"].read_crs())

CRS.from_epsg(4326)

# Create weights for the Friction Surface
# If water level is less than 30 cm, accessibility is affected (from pregnolato et al., (2017))
# If water level is more than 30 cm, accessibility is disrupted (travel time *50)

def friction_flood_weight(flood_rio):
    ''' Generate flood derived weights for the friction surface

    INPUTS
        flood_rio [rasterio] - raster with flood depths from which to generate weights

    RETURNS
        flood_rio [rasterio] - raster with weights
    '''

    from scipy.interpolate import interp1d

    # Function for scale Flood Depth array between 1 (min) and 0 (max)
    def scale_array(arr):
        min_val = np.min(arr)
        max_val = np.max(arr)
        scaled_arr = (arr - min_val) / (max_val - min_val)
        scaled_arr = 1 - scaled_arr  # Invert the scaled values
        return scaled_arr

    flood_rio = flood_rio.read(1)
    flood_rio_orig = flood_rio.copy()

    # Apply the quadratic (parabolic) relationship from Pregnolato et al., (2017)
    # Describes the vehicles max speed according to Flood Depth values (in mm)
    flood_arr = flood_rio[(flood_rio_orig > 0) & (flood_rio_orig < 0.3)]*1000   # flood depth from m to mm
    depth_val = np.arange(1,300,0.1)     # Define discrete Flood Depth values between 1 mm and 300 mm
    func = scale_array(9*10**(-4)*(depth_val**2) - 0.5529*depth_val + 86.9448)   # eq.4 from Pregnolato et al., (2017)
    # Scale the function with the maximum vehicles speed
    func = func*func.max()**-1
    interp_func = interp1d(depth_val, func, kind='linear', fill_value='extrapolate')
    flood_arr_weight = interp_func(flood_arr)

    # Flood Depth < 0 or 999 (open waters) -> 0
    # Flood Depth > 30 cm                  -> 50
    # Flood Depth > 0 & < 30 cm            -> inverse of quadratic function (between 1 and 20 circa)
    flood_rio[(flood_rio_orig > 0) & (flood_rio_orig < 0.3)] = 1/flood_arr_weight
    flood_rio[(flood_rio_orig <= 0) | (flood_rio_orig == 999)] = 1
    flood_rio[(flood_rio_orig >= 0.3) & (flood_rio_orig < 999)] = 50

    # To ensure that weights are always >1 (avoid decresing travel time)
    flood_rio[(flood_rio <1)] = 1

    del flood_rio_orig
    return flood_rio

flood_dict_fd = flood_dict_std.copy()

for key in flood_dict_fd.keys():

    flood_dict_fd[key] = friction_flood_weight(flood_dict_fd[key])

Create new Friction Surface that accounts for Floods disruption

# Weight the Friction Surface with the discrete flood depth array

travel_surf_flood = dict()
for key in flood_dict_fd.keys():
    travel_surf_flood[key] = travel_surf.read(1) * flood_dict_fd[key]

Create an MCP graph object from the flooded friction surfaces.

# convert friction surface to traversal time (lazily). Original data are minutes to travel 1 m:
# We convert it to minutes to cross the cell (1000m). This could be revised

inG_data = dict()
inG_data["baseline"] = travel_surf.read(1) * 1000
for key in travel_surf_flood.keys():
    inG_data[key] = travel_surf_flood[key] * 1000

# Correct no data values. Not needed but good to check
# inG_data[inG_data < 0] = 99999999
# inG_data[inG_data < 0] = np.nan

mcp = dict()
mcp["baseline"] = graph.MCP_Geometric(inG_data["baseline"])
for key in inG_data.keys():
    mcp[key] = graph.MCP_Geometric(inG_data[key])

# Check descriptive statistics
print(f"Mean: {np.mean(inG_data['1in5'])}")
print(f"Max: {np.max(inG_data['1in5'])}")
print(f"Min: {np.min(inG_data['1in5'])}")
print(f"Std: {np.std(inG_data['1in5'])}")

Mean: 41.748477935791016
Max: 22088.69921875
Min: 0.5
Std: 201.65882873535156

Data analysis#

Indicators of interest

Percentage of population within 2h of driving to the nearest primary care facility (population level, and by SES quintile).

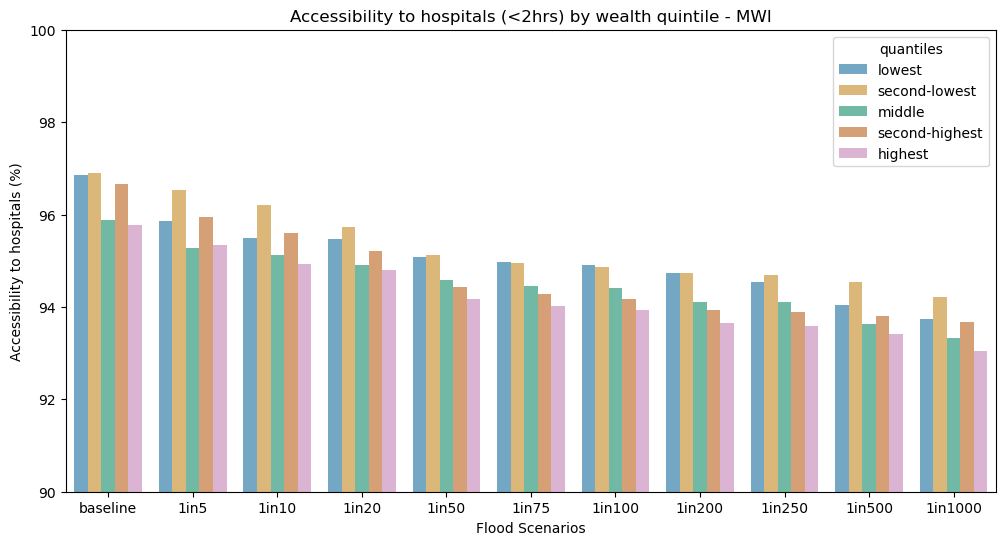

Percentage of population within 2h of driving to the nearest district hospital (population, and by SES quintile).
Percentage of health facilities with direct access to an all season road.
Percentage of health facilities within 2km of an all season road.

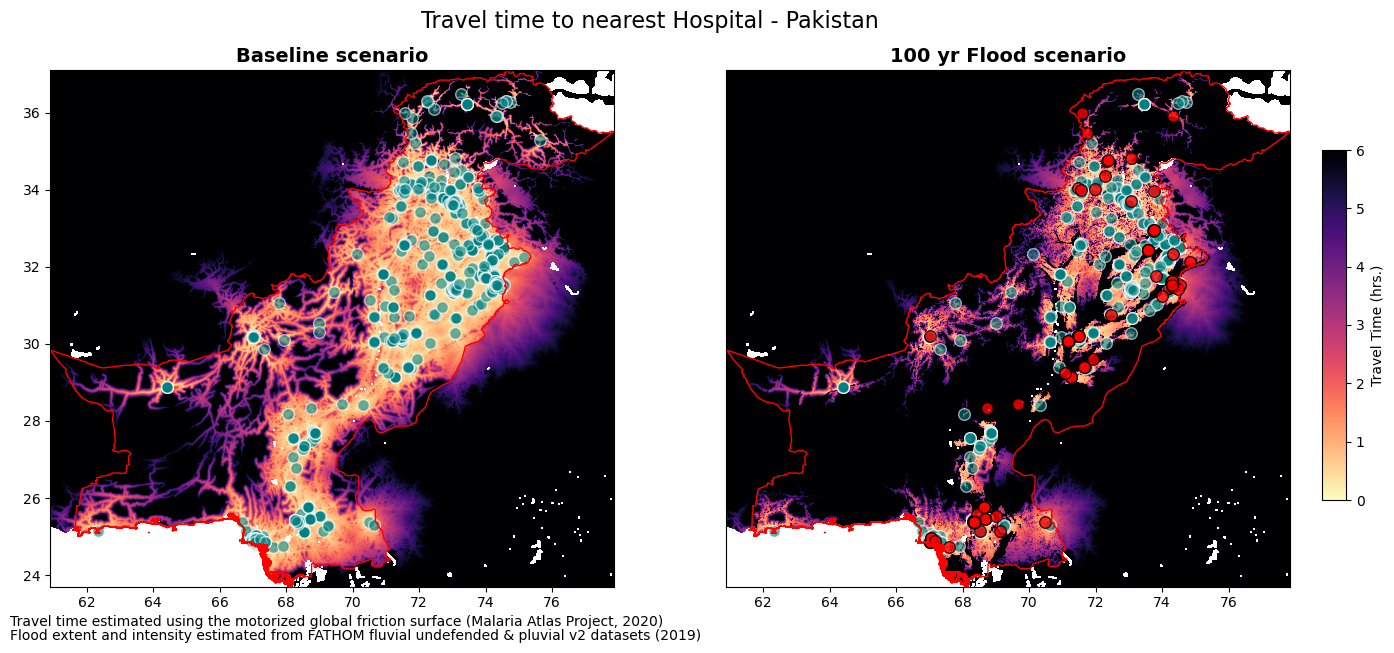

# Calculate the travel time from each grid-cell to the nearest not-flooded destination
# According to the Flood scenario, we'll a different number of flooded facilities

res_hf = dict()
res_hf_hosp = dict()
res_hf["baseline"] = ma.calculate_travel_time(travel_surf, mcp["baseline"], geodf_hf)[0]
res_hf_hosp["baseline"] = ma.calculate_travel_time(travel_surf, mcp["baseline"], geodf_hf_hosp)[0]
for key in travel_surf_flood.keys():
    res_hf[key] = ma.calculate_travel_time(travel_surf, mcp[key], dry_geodf_hf[key])[0]
    res_hf_hosp[key] = ma.calculate_travel_time(travel_surf, mcp[key], dry_geodf_hf_hosp[key])[0]

# Check dimension
display(len(res_hf[key].flatten()), len(dry_geodf_hf_hosp[key]))

# Consider all facilities and Hospitals
res_df.loc[:, 'tt_hf_' + "baseline"] = res_hf["baseline"].flatten()
res_df.loc[:, 'tt_hosp_' + "baseline"] = res_hf_hosp["baseline"].flatten()
for key in travel_surf_flood.keys():
    res_df.loc[:, 'tt_hf_' + key] = res_hf[key].flatten()
    res_df.loc[:, 'tt_hosp_' + key] = res_hf_hosp[key].flatten()

# remove values where pop is 0 or nan
res_df = res_df.loc[res_df['pop']!=0].copy()
res_df = res_df.loc[~(res_df['pop'].isna())].copy()

res_df.loc[:,'xy'] = res_df.loc[:,'xy'].apply(lambda x: Point(x))

res_df.head(2)

	spatial_index	xy	pop	pointid	tt_hf_baseline	tt_hosp_baseline	tt_hf_1in100	tt_hosp_1in100	tt_hf_1in1000	tt_hosp_1in1000	...	tt_hf_1in250	tt_hosp_1in250	tt_hf_1in20	tt_hosp_1in20	tt_hf_1in5	tt_hosp_1in5	tt_hf_1in50	tt_hosp_1in50	tt_hf_1in200	tt_hosp_1in200
0	(0, 0)	POINT (60.89583333333332 37.09583333333333)	8.048295	0	1342.468337	1342.468337	1450.565676	1450.565676	1631.173022	1631.173022	...	1478.206322	1478.206322	1361.230591	1361.230591	1348.986713	1348.986713	1370.691651	1370.691651	1471.091321	1471.091321
1	(0, 1)	POINT (60.904166666666654 37.09583333333333)	7.362457	1	1347.846581	1347.846581	1455.943920	1455.943920	1636.551267	1636.551267	...	1483.584567	1483.584567	1366.608835	1366.608835	1354.364958	1354.364958	1376.069895	1376.069895	1476.469565	1476.469565

2 rows × 26 columns

Create Geodataframe for the population grid

res_gdf = gpd.GeoDataFrame(res_df, geometry='xy', crs=epsg)
res_gdf.rename(columns={'xy':'geometry'}, inplace=True)
res_gdf.set_geometry('geometry', inplace=True)

# convert travel time from minutes to hours
for col in res_gdf.columns:
    if 'tt_' in col:
        res_gdf.loc[:, col] = res_gdf.loc[:, col] / 60

res_gdf.head(2)

	spatial_index	geometry	pop	pointid	tt_hf_baseline	tt_hosp_baseline	tt_hf_1in100	tt_hosp_1in100	tt_hf_1in1000	tt_hosp_1in1000	...	tt_hf_1in250	tt_hosp_1in250	tt_hf_1in20	tt_hosp_1in20	tt_hf_1in5	tt_hosp_1in5	tt_hf_1in50	tt_hosp_1in50	tt_hf_1in200	tt_hosp_1in200
0	(0, 0)	POINT (60.89583 37.09583)	8.048295	0	22.374472	22.374472	24.176095	24.176095	27.186217	27.186217	...	24.636772	24.636772	22.687177	22.687177	22.483112	22.483112	22.844861	22.844861	24.518189	24.518189
1	(0, 1)	POINT (60.90417 37.09583)	7.362457	1	22.464110	22.464110	24.265732	24.265732	27.275854	27.275854	...	24.726409	24.726409	22.776814	22.776814	22.572749	22.572749	22.934498	22.934498	24.607826	24.607826
